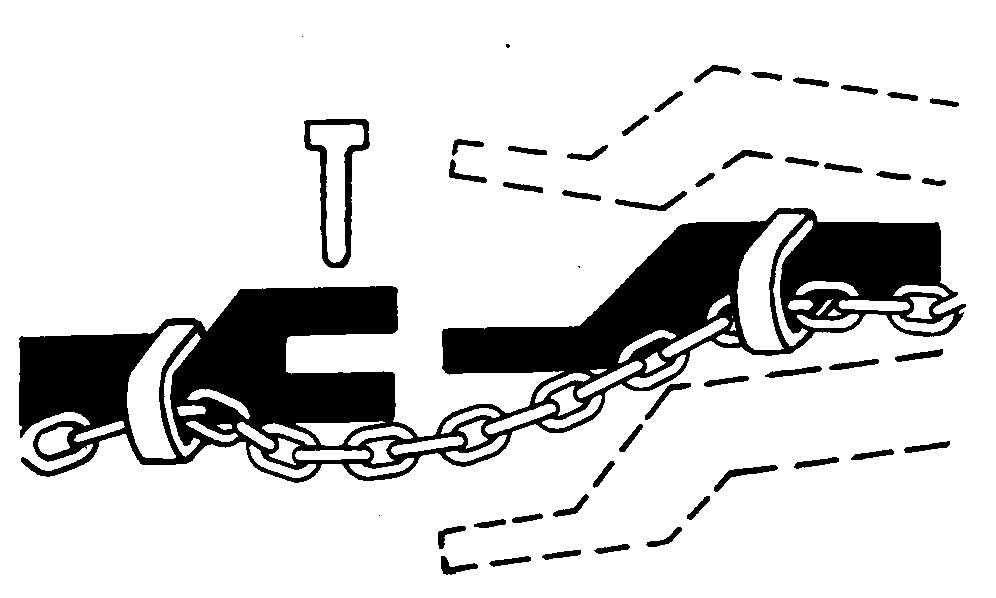

Using a Safety Chain

TS217-UN-23AUG88

Use Safety Chain Correctly

RXA0082663-UN-28JUL05

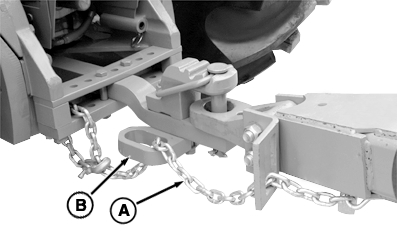

Correct Safety Chain Connection

A - Safety Chain

B - Intermediate Support

CAUTION: Avoid possible accident and injury by using a safety chain on drawn equipment. Use a safety chain with a strength rating equal to or greater than gross weight of equipment. Provide only enough slack in chain to permit turning.

Attach safety chain (A) to drawbar support or other specified anchor locations.

IMPORTANT: DO NOT use safety chain for towing or possible damage to tractor, implement, and drawbar may result. Safety chain is provided only for transport.

Do not use intermediate support (B) as an attaching point, load may break free. As shown, intermediate support is used to keep safety chain from dragging.

Attach and check operation of trailer brakes if equipped.

IMPORTANT: SLOW DOWN when transporting heavy implements.

Drive slowly enough to maintain safe control. Shift to a lower gear for hillsides, rough ground, and sharp turns, especially when transporting heavy equipment.

On icy or graveled grades, be alert for skids which could result in loss of steering control.

Never coast down hill.

Use caution when operating tractor at transport speeds. Reduce speed if towing heavy loads. Heavy towed or rear mounted implements may start swaying in transport. Consult towed equipment operator's manual for recommended transport speeds.
