Implement Power Relay Module

RXA0110047-UN-26AUG10

Remove Rear Cover

RXA0109345-UN-16AUG10

Implement Power Relay Module

RXA0100356-UN-03FEB09

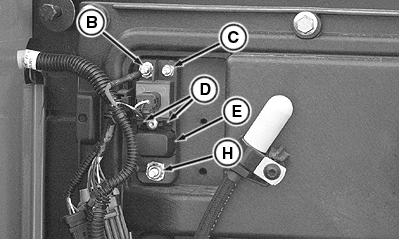

Remove Cover To Access Implement Power Relay Module

A - Cap Screws

B - Switched Power Lug

C - Unswitched Power Lug

D - Fuse Cover Tabs

E - Fuse Cover

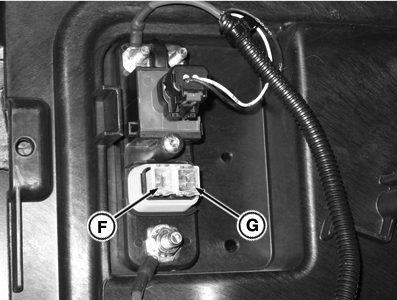

F - 60 Amp Fuse

G - 30 Amp Fuse

H - Battery Input Stud

Remove four cap screws (A) and cab rear cover. Implement Power Relay Module is located in upper left corner, routes power to implement Bus Breakaway Connector.

Top left module stud is switched power lug (B) protected by a 60 Amp fuse (F). Top right module stud is unswitched power lug (C) protected by a 30 Amp fuse (G).

Bottom center is the battery power input stud (H).

To Change Fuses

1. Press down on fuse cover tabs (D) and remove fuse cover (E).

2. To remove, pull fuse straight back.

3. Replace with new fuse.

4. Replace cover and slide tabs over cover edge to hold in place.
