Adjusting Front Grille Lights

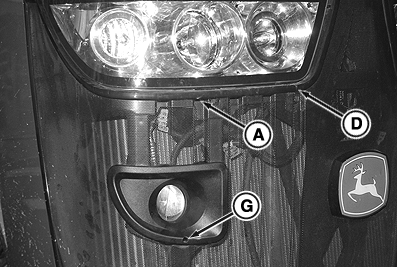

RXA0106698-UN-26FEB10

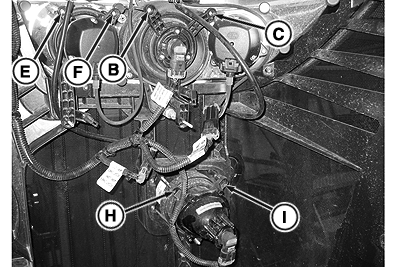

RXA0106696-UN-26FEB10

A - High Beam Lowering Adjustment Screw

B - High Beam Tilt Up And Out Adjustment Screw

C - High Beam Tilt Up And In Adjustment Screw

D - Inner Hood Light Lowering Adjustment Screw

E - Inner Hood Light Tilt Up And Out Adjustment Screw

F - Inner Hood Light Tilt Up And In Adjustment Screw

G - Low Beam Lowering Adjustment Screw

H - Low Beam Tilt Up And Out Adjustment Screw

I - Low Beam Tilt Up And In Adjustment Screw

To adjust front grill lights, use the following steps as needed.

For High Beam Headlights:

1. To lower the high beam aim, turn high beam adjustment screw (A) clockwise.

   To raise and tilt out high beam, turn high beam adjustment screw (B) clockwise.

   To raise and tilt in high beam, turn high beam adjustment screw (C) clockwise.

   For Inner Hood Light:

2. To lower inner hood light, turn center spot adjustment screw (D) clockwise.

   To raise and tilt out inner hood light beam, turn center spot beam adjustment screw (E) clockwise.

   To raise and tilt in inner hood light beam, turn center spot beam adjustment screw (F) clockwise.

   For Low Beam Headlights:

3. To lower the low beam aim, turn low beam adjustment screw (G) clockwise.

   To raise and tilt out low beam headlights, turn low beam adjustment screw (H) clockwise.

   To raise and tilt in low beam headlights, turn low beam adjustment screw (I) clockwise.

4. Repeat for opposite side of tractor.
