Replacing Courtesy Light Bulb

1.
   RXA0101058-UN-19MAR09

   Carefully Pull Cover Down


   RXA0099147-UN-18FEB09


   RXA0099143-UN-19SEP08

   Remove Bulb From Retaining Ring

   A - Cover

   B - Courtesy Light Connector

   C - Courtesy Bulb

   D - Plug

   E - Map Light Connector

   F - Rear clips

   G - Edges of Cover

   H - Front Clip

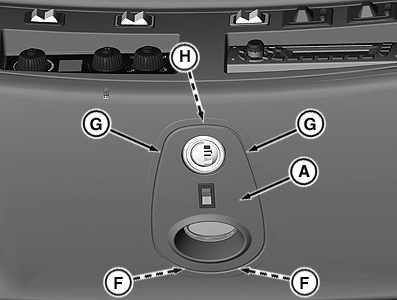

   Carefully insert fingers under edges (G) of cover, then pull cover (A) down to expose bulbs.

---




2. Pull down on cover front disconnecting front clip (H).

3. Remove rear clips (F) by sliding cover toward cab center.

4. Unplug courtesy light connector (B).

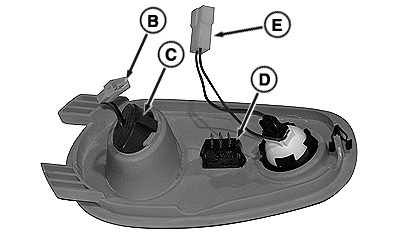

5. Disconnect plug (D), courtesy light connector (B), and map light connector (E). Cover with bulb assembly is now free from cab roof.

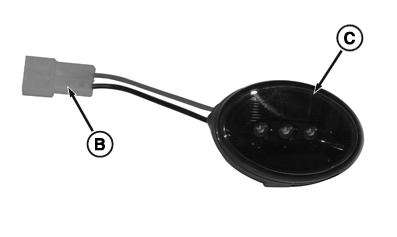

6. Remove courtesy light bulb (C) from cover.

7. Install new bulb in cover.

8. Slide rear clips into roof.

9. Reconnect connectors (B and E), plug (D), then install rear clips before swinging cover front up and snapping front clip (H) into place.
