Checking Wheel and Wheel Weight Bolts

Torque rim to wheel bolts (A) and hub bolts (B) per torquing procedure listed in the Wheels, Tires and Treads section. Torque weight bolts (C) per torquing procedure listed in the Performance Ballasting section. For front wheels, see section 80 of this Operator's Manual. For rear wheels, see section 81 of this Operator's Manual.

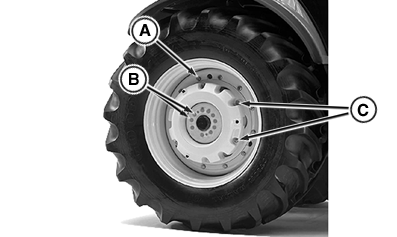

RXA0098559-UN-16JUN08

A - Rim to Wheel Bolts

B - Hub Bolts

C - Weight Bolts
