Checking Air Intake System

Check all air intake system joints to make sure that they are not damaged and have tight connections with no air leaks.

RXA0110054
RXA0110054-UN-26AUG10

RXA0110055
RXA0110055-UN-26AUG10

RXA0110056
RXA0110056-UN-26AUG10

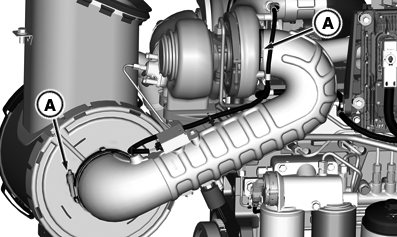

A - Air Cleaner Pipe, Constant Tension Hose Clamps (2 Used)

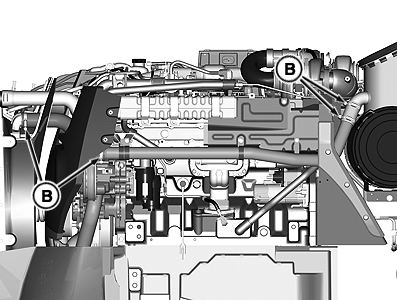

B - Aspirator Pipe, Hose Clamps (4 Used)

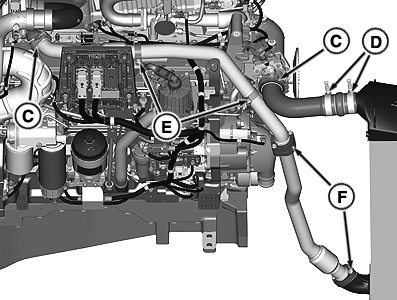

C - Band Clamps (2 Used)

D - Hose Clamps (2 Used)

E - Charge Air Pipe, Hose Clamps (2 Used)

F - Charge Air Pipe, Flange Clamps (2 Used)

OURX935,0000C4D-19-20100921
