Servicing Batteries And Connections

NOTE:

RXA0086786-UN-14FEB06

RXA0086787-UN-14FEB06

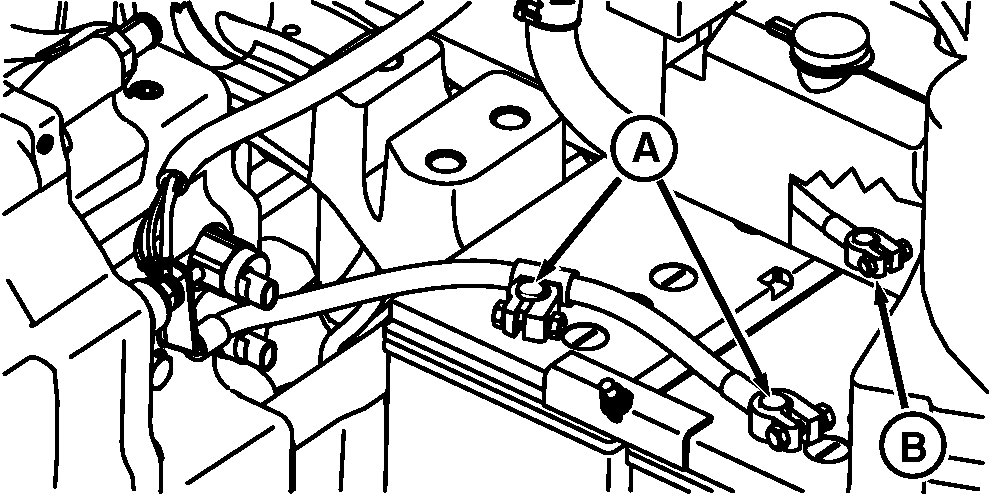

Disconnect Negative Battery Cables Before Positive Cables

A - Negative Battery Cables

B - Positive Battery Cables

CAUTION: Never use compressed air to clean batteries. It can cause a build up of static charge leading to potential injury.

Battery gas can explode. Keep sparks and flames away from batteries. Use a flashlight to check battery electrolyte level.

Never check battery charge by placing a metal object across posts. Use a voltmeter or hydrometer.

Always remove battery ground cables before positive battery cables and connect them last. Do not let disconnected ground terminal touch metal surface.

WARNING: Battery posts, terminals, and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and reproductive harm. Wash hands after handling.

CAUTION: Avoid contact with poisonous sulfuric acid in battery electrolyte. Battery acid can burn skin, damage clothing, and cause blindness if splashed into eyes.

NOTE: For optimum battery performance, keep battery terminals clean and tight.

For replacement batteries, follow manufacturer's recommendations.

1. Remove battery compartment cover.
2. Remove battery hold down clamp and slide batteries forward.
3. Disconnect negative battery cables (A), then positive battery cables (B).
4. Remove any corrosion with a terminal brush, then clean terminals and battery posts using a baking soda and water solution.
5. Rinse with clean water and air dry.
6. Connect positive battery terminals, then connect negative battery terminals.
7. Apply thin coat of grease to cable ends.
8. Slide batteries back into compartment and install battery hold down clamp.
9. Install battery compartment cover.
