Power Module

IMPORTANT:

RXA0109842-UN-18AUG10

Remove Battery Compartment Cover

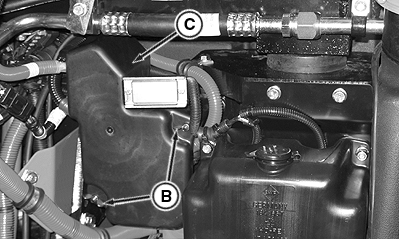

RXA0109384-UN-16AUG10

Remove Power Module Cover

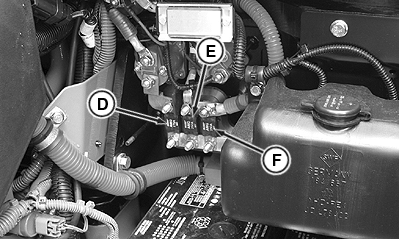

RXA0109334-UN-16AUG10

Power Module located in Battery Compartment

A - Battery Compartment Cover

B - Wing Nuts

C - Power Module Cover

D - Hydraulic Backup Pump—175 Amp Fuse

E - Alternator/Battery Relay—250 Amp Fuse

F - Master Fuse—250 Amp Fuse

Do not attempt to disassemble fuses unless instructed by your John Deere™ dealer.

The Power Module can be accessed through the battery compartment cover (A). Remove wing nuts (B) and Power Module cover (C) to locate fuses.
