Load Center Fuses

NOTE: Fold seat backrest down to allow easier access, and allow cab lighting to shine on load center when fuses are being inspected or replaced.

Load center is found directly behind the operator's seat and just below the cab rear window. To access load center, lift up on Operator's Manual holder (A).

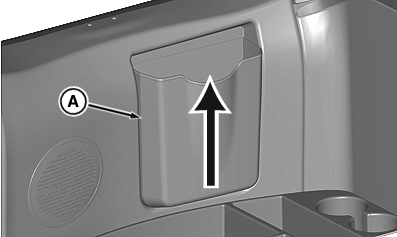

RXA0099400-UN-16DEC08

Operator's Manual Holder

A - Operator's Manual Holder

The illustration to the right explains how to read the load center diagram.

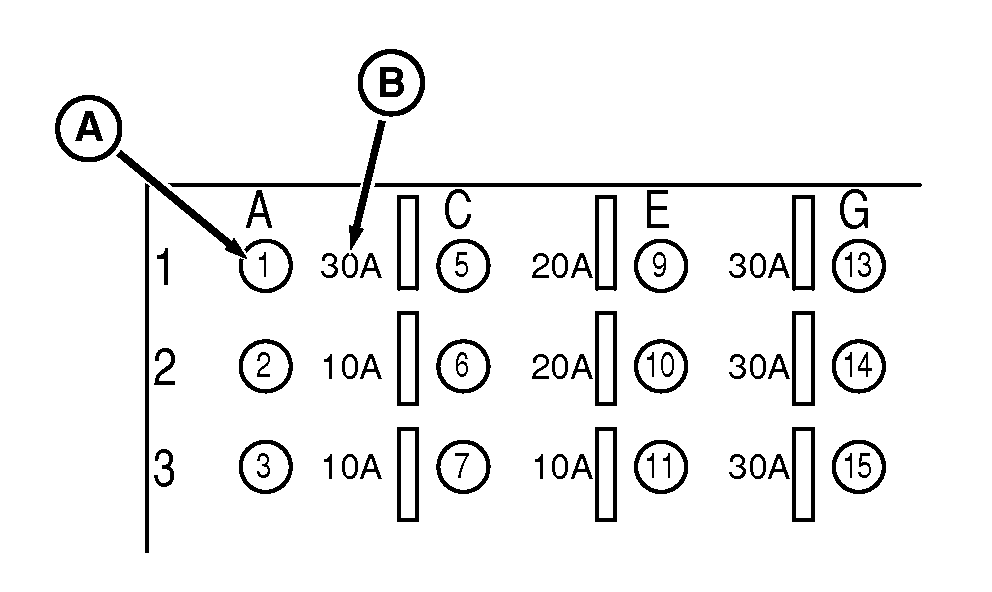

RXA0099396-UN-14OCT08

Load Center — Legend

A - Fuse Location Number

B - Fuse Size

IMPORTANT:

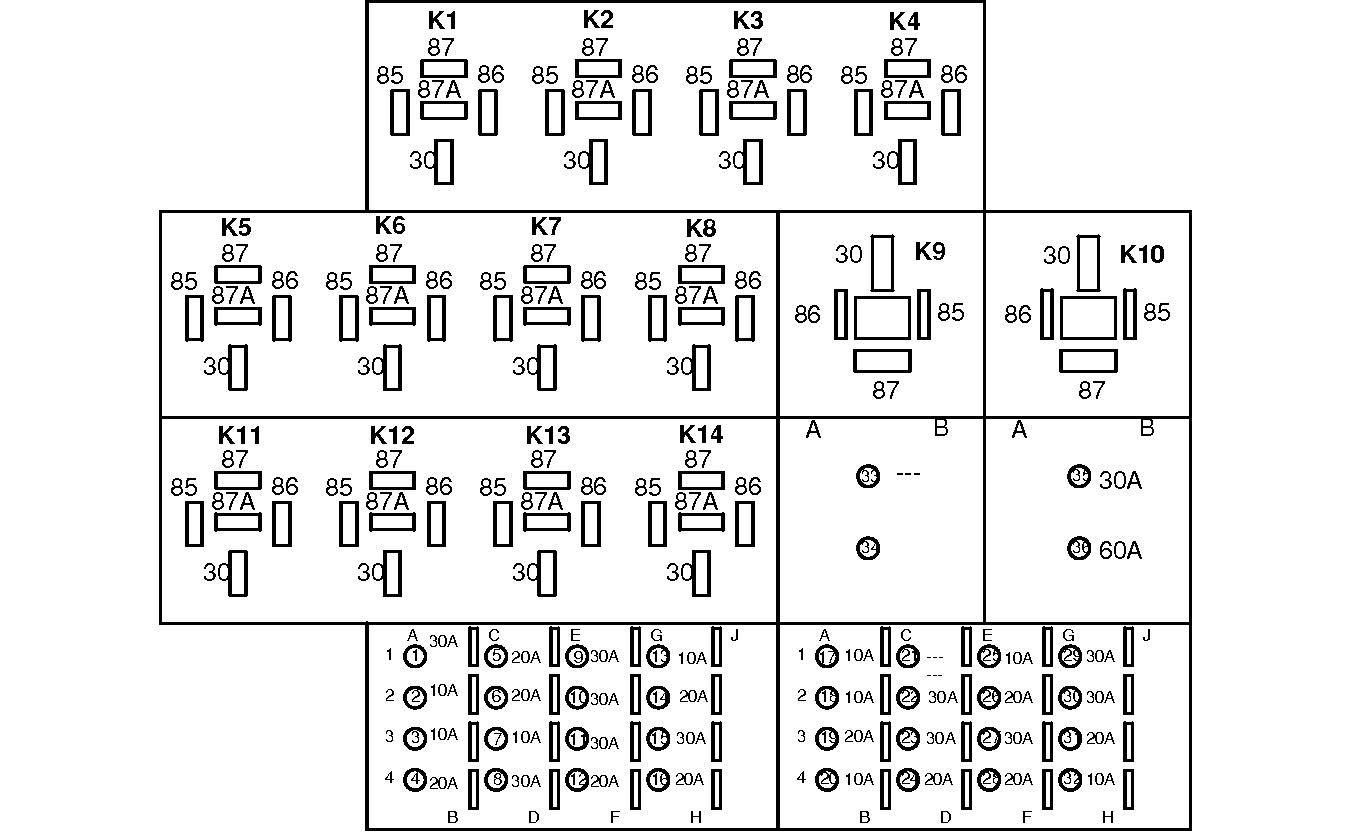

RXA0107612-UN-19MAY10

1 - Key Switch

2 - Seat (Operator Presence)

3 - Air Conditioner

4 - Beacon

5 - CSM

6 - SCC

7 - CLC

8 - Fenders

9 - Roof

10 - Implement Flood

11 - Implement Power

12 - Brake

13 - ACS™

14 - Loader

15 - Convenience

16 - FCC (CAB)

17 - MWG (JDLink™)

18 - Light

19 - Seat

20 - Alternator

21 - Spare

22 - Suspension

23 - Convenience

24 - Video (If Equipped)

25 - Spare

26 - SST (Track Tractors Only)

27 - Convenience

28 - Spare

29 - Spare

30 - Implement Power

31 - Mirror

32 - Come Home Mode—IVT™/AutoPowr™ Only

Ensure both negative (—) and positive (+) battery connections are disconnected from both batteries prior to fuse inspection or replacement.

Open hood to access front load center located in front of cowl. Remove cover (A).

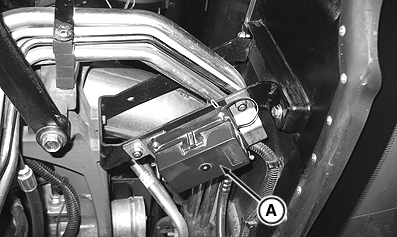

RXA0106419-UN-22FEB10

Remove Cover

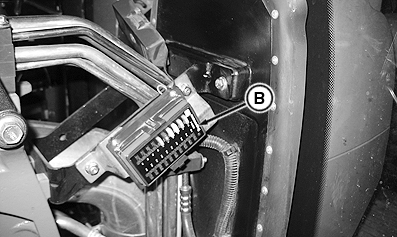

RXA0106401-UN-18FEB10

Fuses

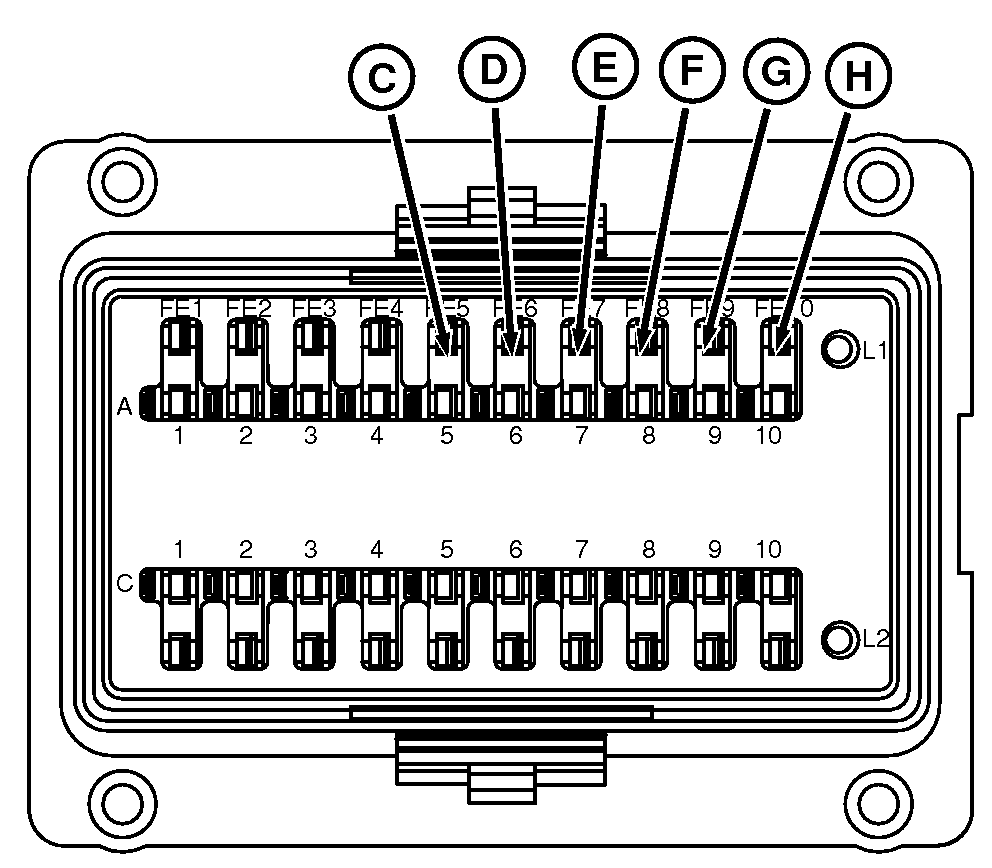

RXA0106405-UN-18FEB10

Fuses

A - Cover

B - Front Load Center Panel

C - Steering Control Unit (15 Amp)

D - Key Switch (10 Amp)

E - Engine Control Unit (20 Amp)

F - Engine Control Unit (20 Amp)

G - Fuel Dosing Pump (15 Amp)

H - Fuel Transfer Pump (15 Amp)
