Using Seven-Terminal Outlet

RXA0068235-UN-17JAN06

RW21249A-UN-29APR99

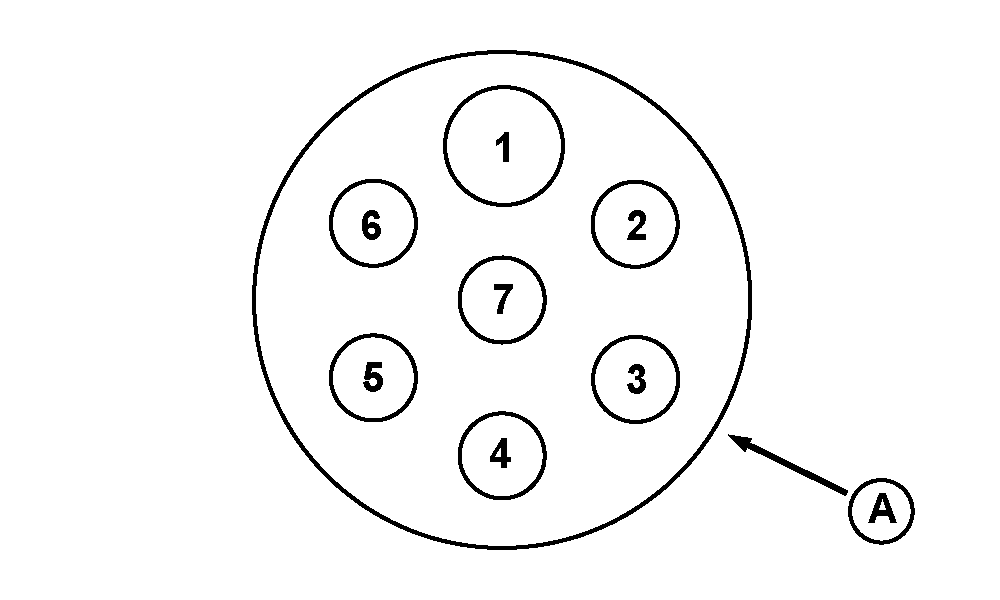

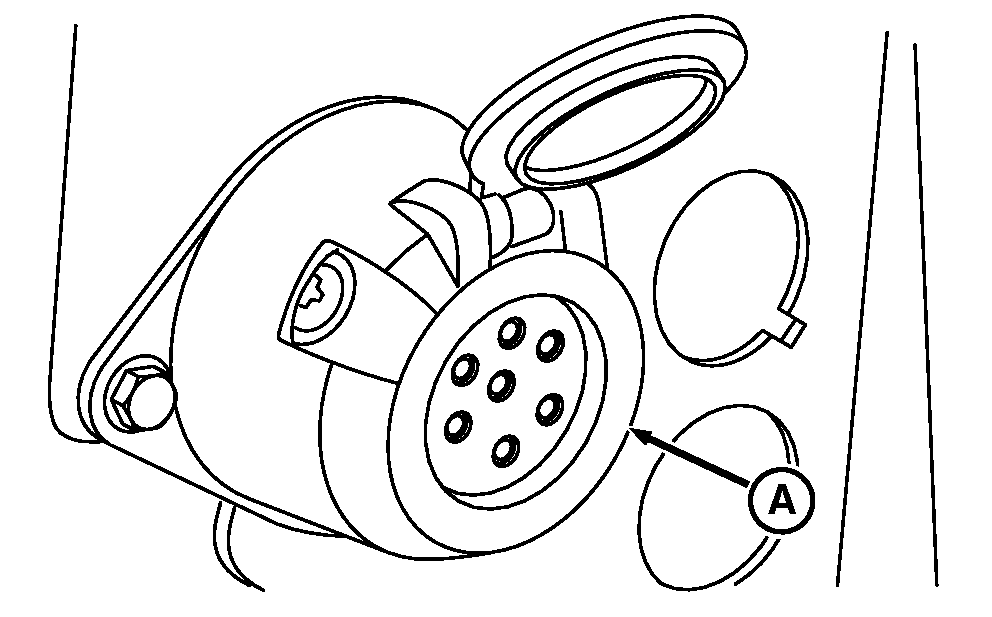

A - Seven Terminal Outlet

Outlet (A) is used to connect lights, turn signals, and remote electrical equipment on trailers or implements. Always use auxiliary light on towed implement when tractor rear signals and other lights are obscured.

If extra implement lights and controls, such as switches are needed, contact your John Deere™ dealer. He can provide information on methods to tie in the light switch with one of the accessory wires located in the 7 pin terminal on the back of the tractor.

NOTE: Matching plug is available through your John Deere dealer.

Terminal	Function
1	Left Turn Light
2	Accessory
3	Ground
4	Right Turn Light
5	Right Tail Light
6	Brake Lights
7	Left Tail Light
