Operating Turn Signals and High/Low Beam

CAUTION: Prevent collisions between other road users, slow moving tractors with attachments or towed equipment, and self-propelled machines on public roads. Frequently check for traffic from the rear, especially in turns, and use turn signal lights.

TS951-UN-12APR90

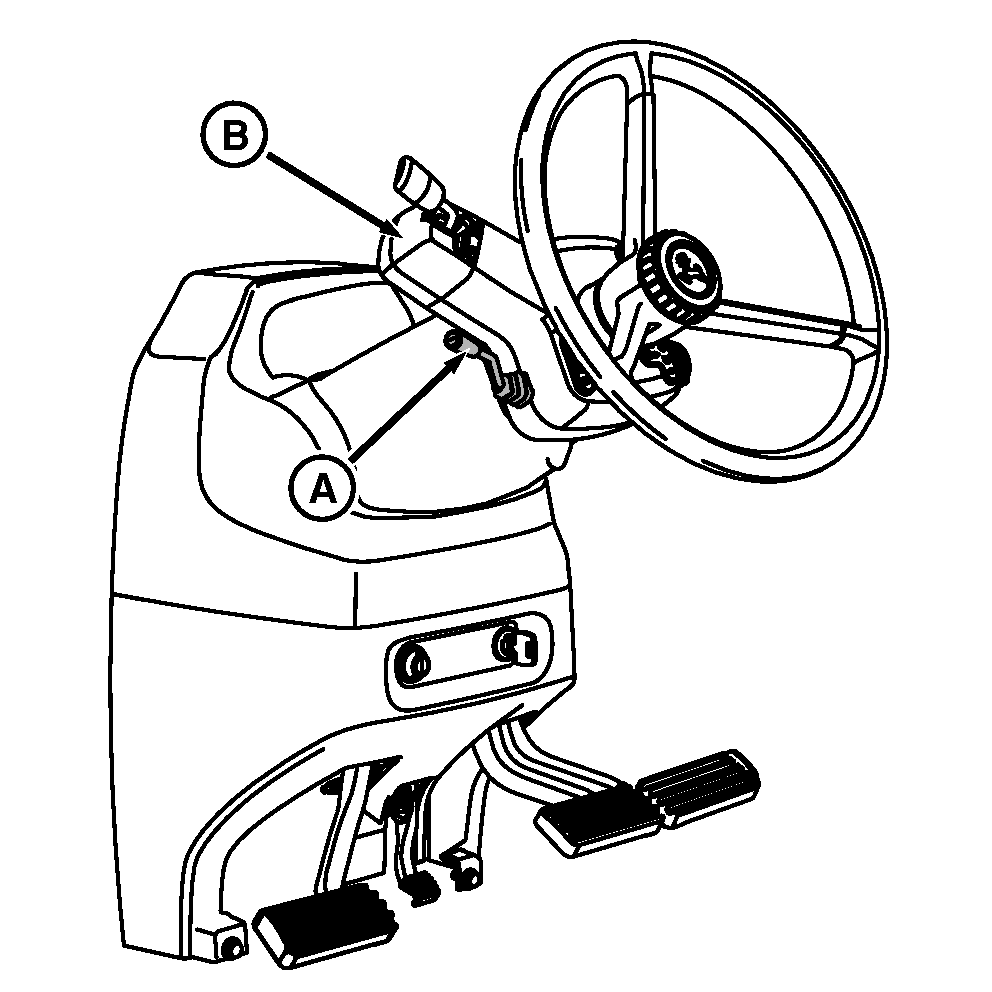

RXA0098434-UN-07JUL08

A - Turn Signal Lever

B - Left Hand Reverser (If Equipped)

Use headlights and turn signals day and night. Follow local regulations for equipment lighting and marking. Keep lighting and marking visible, clean, and in good working order. Replace or repair lighting and marking that has been damaged or lost. An implement safety lighting kit is available from your John Deere™dealer.

NOTE: When turn signal is activated, a short audible chirping sound will be heard.

Turn Signals:

Push Turn Signal Lever (A) up for a right turn, or pull down for a left turn. Return lever to center position after completing turn.

High/Low Beam:

Push lever (A) forward to activate high beam headlights; high beam indicator will come on. Pull lever into center position to operate low beam. Pull lever toward you and release to momentarily activate high beams.

Dim Road Lights to low-beam for oncoming vehicles.
