Checking the Manually-Operated Hitch for Wear

CAUTION: Parts that have reached or exceeded their wear limit must be replaced with new parts.

RXA0095855-UN-29AUG07

RXA0095856-UN-29AUG07

A - Diameter (A)

B - Diameter (B)

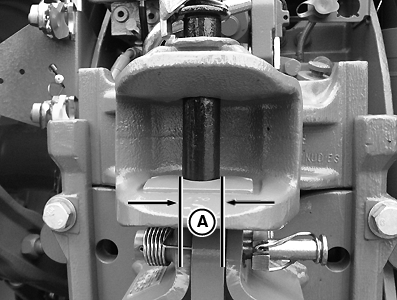

Check diameter (A) of the hitch pin.

Item	Measurement	Specification
Hitch pin	Wear limit or minimum diameter	29.0 mm 1.14 in.

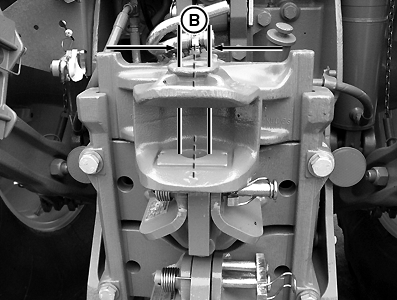

Check diameter (B) of the receiver hole.

Item	Measurement	Specification
Top and bottom receiver holes (measured in direction of travel)	Wear limit or maximum permitted diameter	35.0 mm (oval) 1.38 in. (oval)

LX1042085-UN-26FEB07

Gap "X"

LX1042084-UN-26FEB07

Bearing Play "Y"

Replace retaining wire if:

Gap (X) is greater then 3 mm (0.118 in.)

IMPORTANT: If bearing play (Y) is greater than 1.5 mm (0.059 in.) the entire trailer hitch must be replace with a new hitch.
