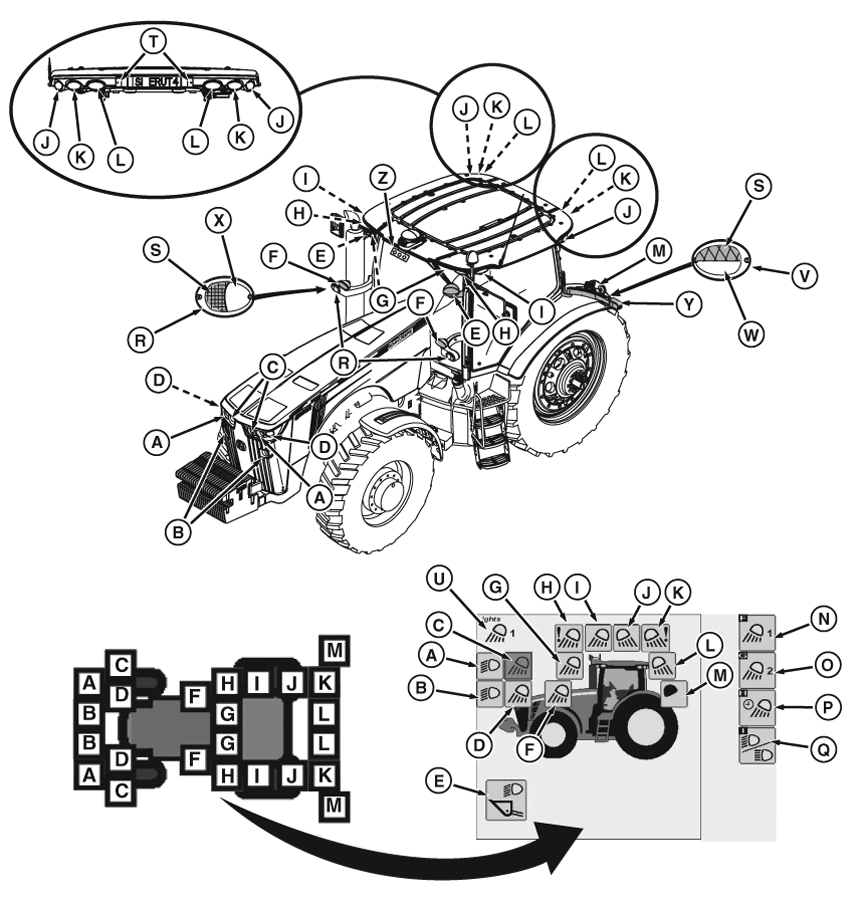

Light Identification

RXA0127457-UN-07AUG12

A - Road Lights (High Beam)

B - Road Lights (Low Beam)

C - Inner Hood Lights

D - Outer Hood Lights

E - Loader Lights

F - Mid Body Lights

G - Front Inner Roof Lights

H - Front Outer Roof Lights¹

I - Front Side Roof Lights

J - Rear Side Roof Lights

K - Rear Outer Roof Lights ¹

L - Rear Inner Roof Lights

M - Rear Fender Lights²

N - Flood Lights 1 Softkey

O - Flood Lights 2 Softkey

P - Delayed Egress Light Softkey

Q - High/Low Beam Softkey

R - Front Clearance Lights

S - Amber Lens

T - License Plate

U - Indicator, Flood Light Position

V - Rear Lights

W - Red Lens

X - Clear Lens

Y - Extremity Light

Z - Trailering Lights (If Equipped)

All lights, except for Premium lighting option inner hood flood lights (C), are same for left and right side of tractor. With Premium lighting option, right inner hood flood light is an HID bulb, and left inner hood flood light is a halogen bulb.

Lights are configured on CommandCenter™ light page. Road/Flood Lights (A through M) are configured ON by selecting that particular light. Selecting a particular light a second time will toggled it OFF. CommandARM™ controls actually turn lights on and off, see Configurable Lights in this section.
