Adjusting Set Speeds

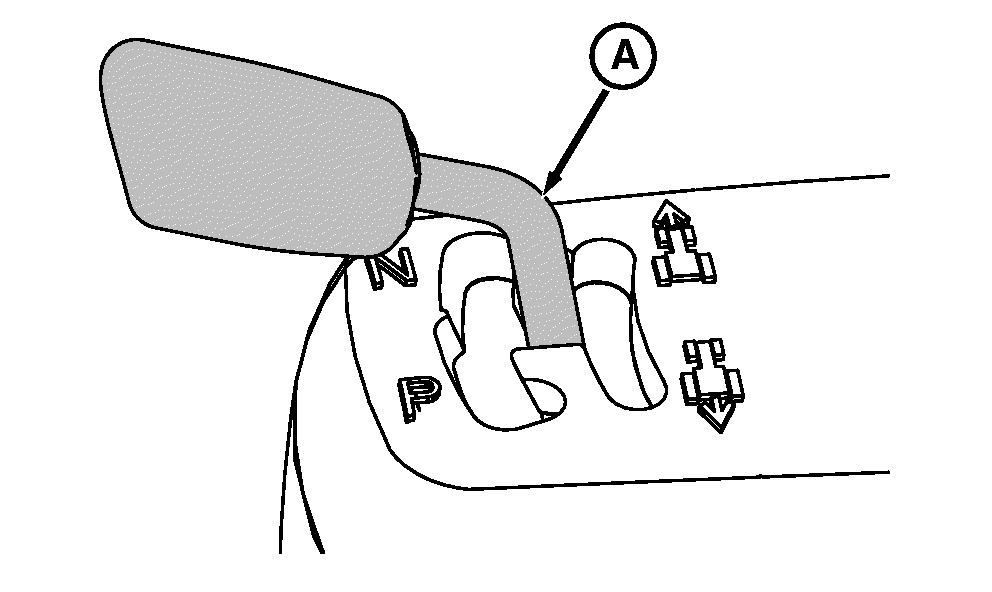

RXA0068281-UN-27AUG03

Left-Hand Reverser Shown

A - Left-Hand Reverser

CAUTION: Avoid unexpected rapid acceleration. Check and adjust set speeds before putting tractor in motion.

Turn key switch to ”RUN” position. (For tractors with right-hand reverser, engine must be running to change set speeds.)

Move lever (A) to Scroll position. Forward and reverse set speeds scroll on corner post display pausing at each speed for 2 seconds.

Adjust each speed when it displays by rotating set speed adjuster on speed control lever forward to increase the set speed value or rearward to decrease it.

NOTE: Set speed adjustments may affect the corresponding set speed of the opposite direction. (See ADJUSTING REVERSE-FORWARD SET SPEED RATIO in this section.)

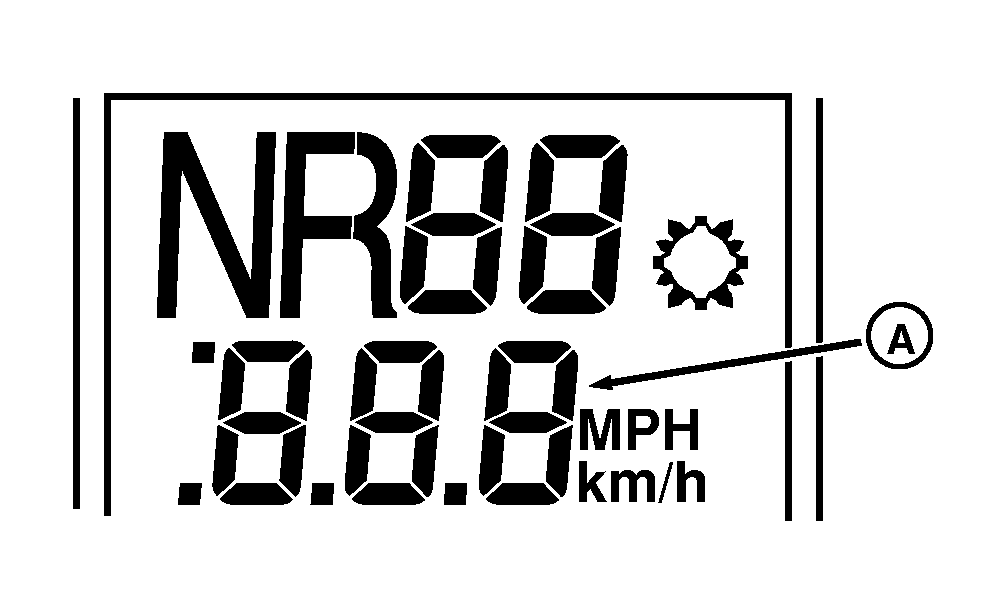

RXA0098901-UN-20AUG08

Corner Post Display

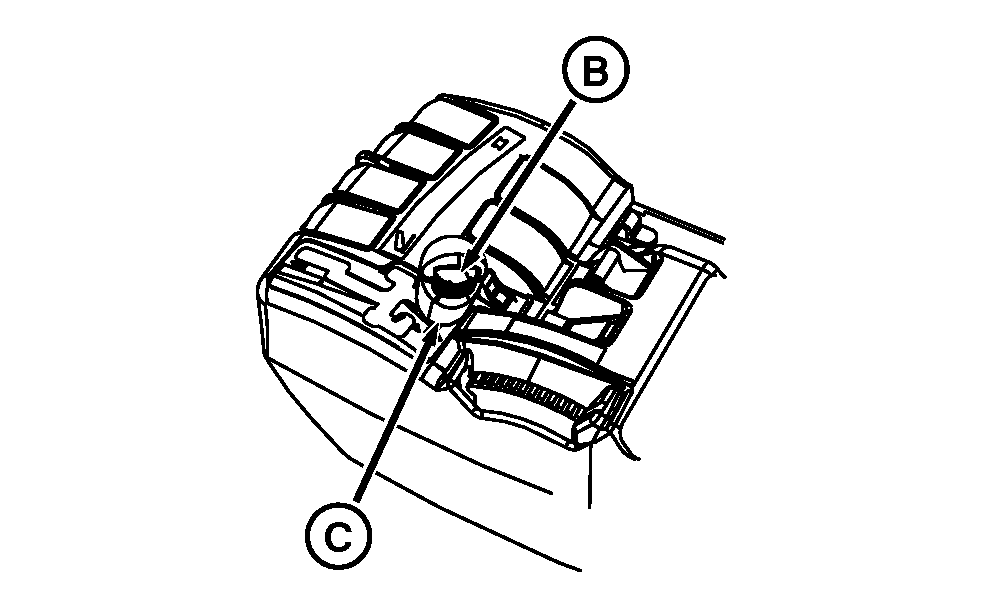

RXA0101043-UN-19MAR09

Right-Hand Reverser Shown

A - Display

B - Set Speed Adjuster

C - Speed Control Lever

Set speed of a selected speed band is displayed in orange on the corner post display and the ground speed of the tractor is displayed in white letters. Set speed can be adjusted while the tractor is moving by rotating set speed adjuster (B). Increasing set speed value increases ground speed. Decreasing set speed value decreases ground speed. New set speed is now on display (A).

Maximum ground speed of a selected speed band is attained at full throttle when speed control lever (C) is pushed forward to end of respective speed band slot.
