Cleaning Radiator, Coolers and Air Conditioning Condenser

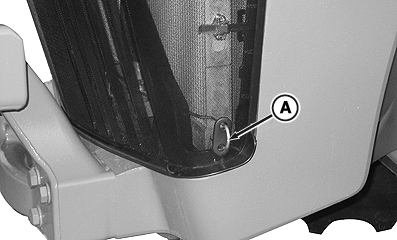

1. Pull hood release (A) and raise hood.


   RXA0110051-UN-26AUG10


   RXA0107197-UN-07APR10


   RXA0107196-UN-07APR10

   A - Hood Release

   B - Spring Latches

   C - Fuel/Hydraulic Cooler

---

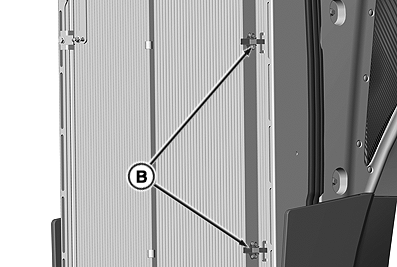

2. Release two spring latches (B) per side.

   NOTE: Using an air hose, clean radiator and cooler units by blowing out any foreign material from back to front.

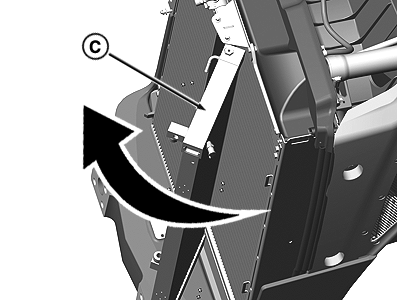

3. Swing out fuel/hydraulic cooler (C) on the left side of the tractor or condenser, on right side of tractor.

4. To clean, blow air through fuel/hydraulic cooler and condenser from back to front.

5. When finished cleaning components, swing condenser and coolers back to original position and latch in place.
