Accessing Diagnostic Trouble Codes

RXA0098156
RXA0098156-UN-07NOV08

CommandCenter™ Main Menu

RXA0099746
RXA0099746-UN-14JUL10

Information Icon

RXA0110758
RXA0110758-UN-16SEP10

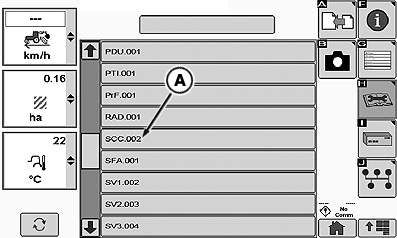

Select Diagnostic Trouble Codes Page

RXA0110759
RXA0110759-UN-16SEP10

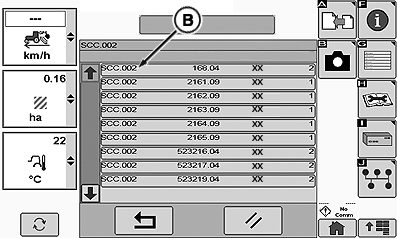

Select Code

A - Controller

B - Code

  1. Select Information icon at CommandCenter™ main menu.

  2. Select Trouble Codes softkey.

  3. Select specific controller (A) desired.

  4. Select specific code (B).

CommandCenter is a trademark of Deere & Company

OURX935,0001124-19-20100920
