Using Rear Wheel Weights

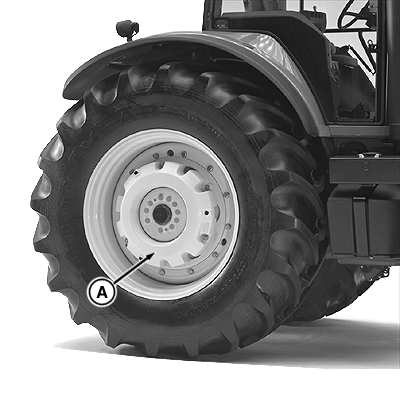

RXA0056676-UN-06SEP01

A - Rear Wheel Weight

CAUTION: When installing weights, use appropriate equipment or have the job performed by your John Deere™ Dealer.

NOTE: When using 1524 mm (60 in.) tread setting, maximum of two 205 kg (450 lb) or one 635 kg (1400 lb) weight can be installed on inside of wheel.

Install weight (A) on wheel.

Item	Measurement	Specification
Weight Attaching Bolts
M16-Bolt	Torque	310 Nm (230 lb-ft)
M20-Bolt	Torque	610 Nm (450 lb-ft)

For additional weights, install bolts in previous weight. Rotate alternate weight to align bolts with weight holes.

Tighten bolts and then retighten after driving approximately 100 meters (100 yd).

Retighten bolts after working 3 HOURS and again after 10 HOURS.

Check tightness every 250 hours.

IMPORTANT: Inside wheel weights must have at least 25 mm (1 in.) clearance between weight and tractor components.
