Using QUIK-TATCH Weights

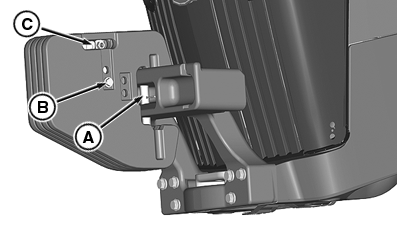

RXA0107967-UN-03JUN10

A - Retaining Bolts

B - Retainer with Hole Up

C - Center

Up to 22 QUIK-TATCH weights can be installed on tractors.

Install QUIK-TATCH weights, balanced on each side of center (C). The first two weights must be installed as a pair.

Run retaining bolts (A) through holes and secure with a nut to hold six weights or fewer in position. Tighten bolts.

Item	Measurement	Specification
Weight Attaching Bolts
Bolt	Torque	230 Nm (170 lb-ft)

Insert retainers between weights, one with threaded hole upward (B) and the other with threaded hole downward when eight or more weights are installed. Tighten bolts.

Item	Measurement	Specification
Weight Attaching Bolts
Bolt	Torque	230 Nm (170 lb-ft)
