Record Engine Serial Number

RXA0110459-UN-30AUG10

RXA0114932-UN-11MAY11

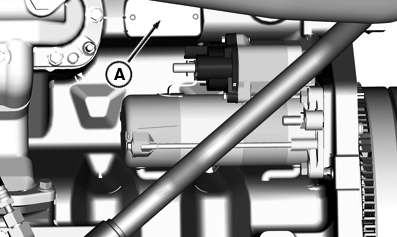

A - Engine Serial Number Plate Location

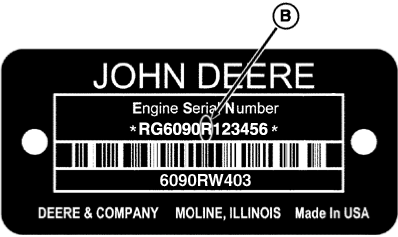

B - Engine Serial Number Plate

Identification plate location (A) is on left side of engine near starter.

Serial Number
*–––––––––––––––––––––––––––––––––––––––––––––––––––––*

Engine emission tier level is identified by seventh character of the engine the engine serial number.

Emission Tier Level	Seventh Character of Engine Serial Number
U.S. EPS Interim Tier 4 and EU Stage III B	R
U.S EPA Tier 2 and EU Stage II	G
