Jack Up the Tractor - Lifting Points (2010-52-EU)

The illustrations show the recommended lifting points for jacking up the tractor. Use appropriate and suitable lifting device.

RXA0126091-UN-31JUL13

RXA0126092-UN-25APR12

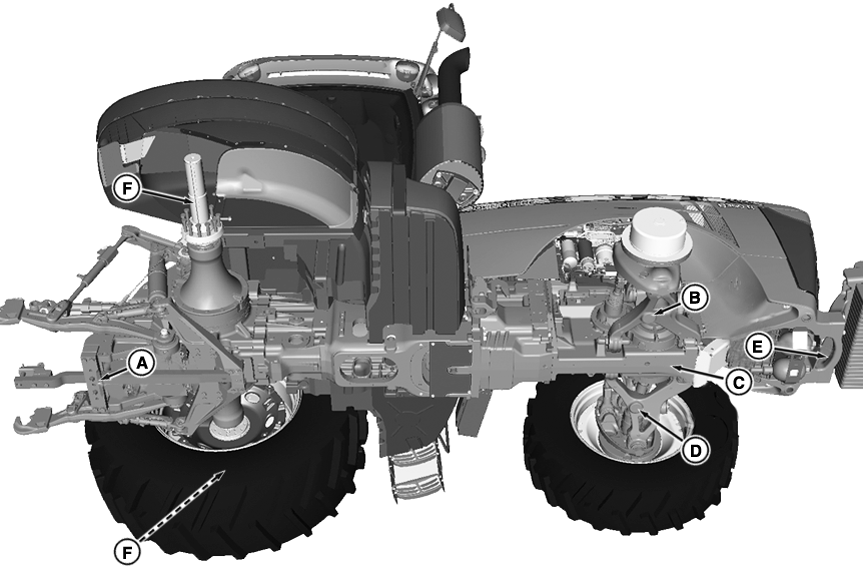

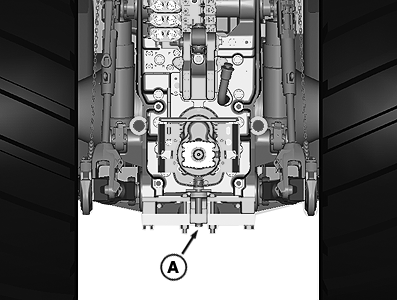

A- Raise Rear of Tractor, e.g. to Remove Rear Wheel

B- Raise Right End of Front Axle, e.g. to Remove Right Front Wheel

C- Raise Center of Axle (Use Wooden Wedges to Prevent Axle from Tilting)

D- Raise Left End of Front Axle, e.g. to Remove Left Front Wheel

E- Raise Front End of Tractor under the Basic Weight

RXA0126093-UN-26APR12

Jack up the Front End of Tractor

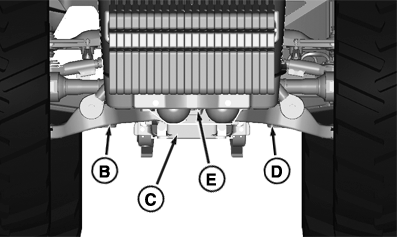

B - Raise Right End of Axle, e.g. to Remove Right Front Wheel

C - Raise Center of Axle (Use Wooden Wedges to Prevent Axle from Tilting)

D - Raise Left End of Axle, e.g. to Remove Left Front Wheel

E - Raise Front End of Tractor under the Basic Weight

CAUTION:

RXA0084749-UN-25OCT05

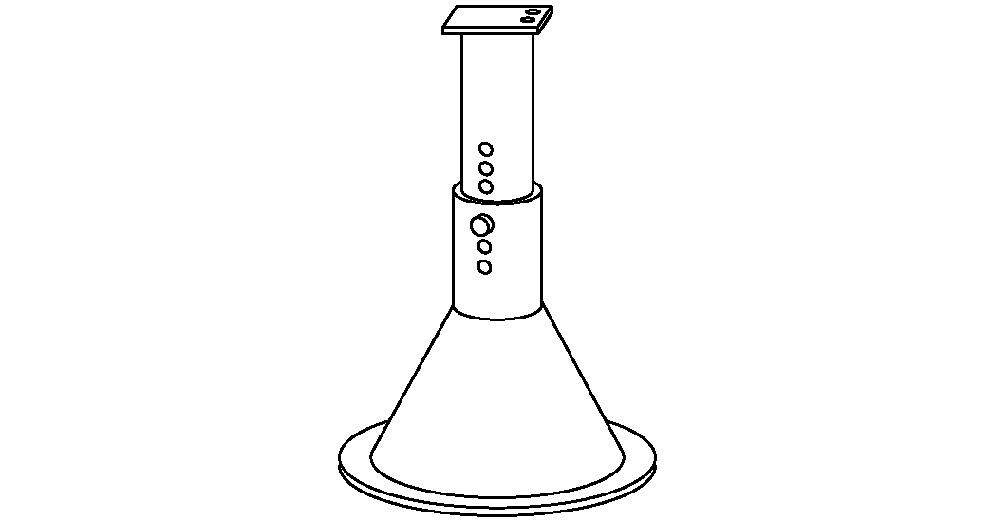

JT07211 Support Stands

RW50052A-UN-10DEC98

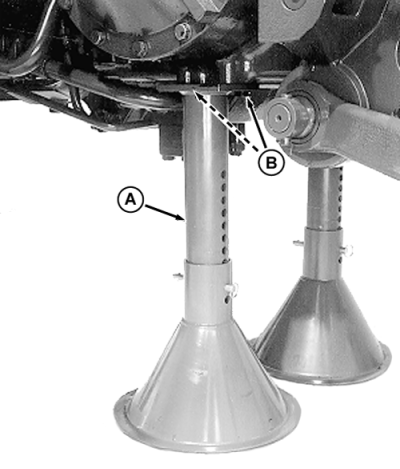

JT07211 - Support Stands

Jack up tractor on firm, level ground only.

Before doing any further work on the tractor, first secure it using suitable support stands. The special John Deere tools shown can be used for this purpose. These support stands are available from your John Deere dealer.
