Using Differential Lock

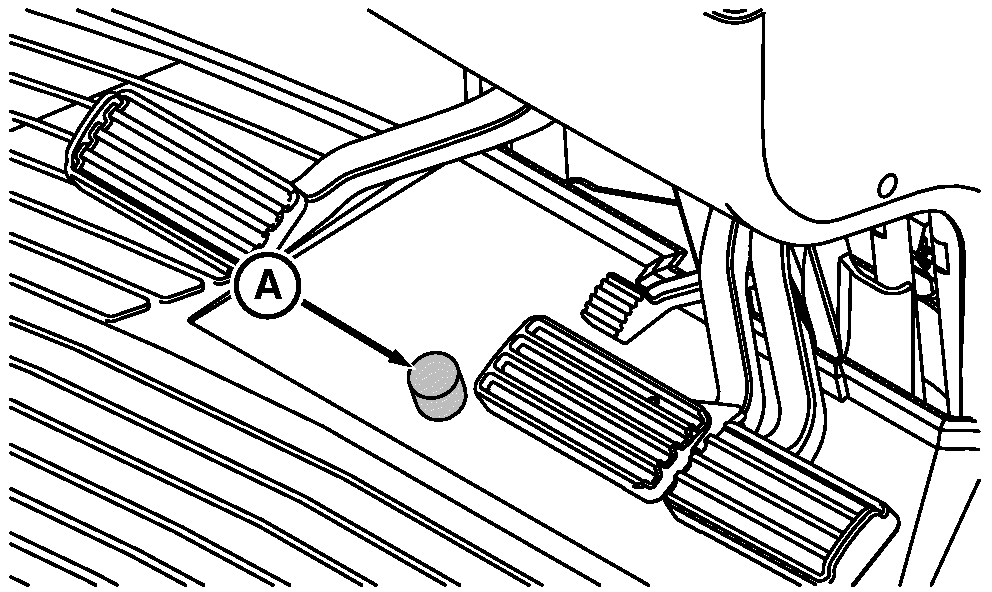

RXA0069157-UN-27AUG03

A - Differential Lock Button

IMPORTANT: Engage differential lock before entering a situation where wheel slippage may occur or when all wheels appear to be turning at the same speed. If engaged after wheels begin to spin, damage to differential could result.

NOTE: On some tractors both front and rear axles have differential locks. When equipped with both, the front axle differential lock will engage when the rear differential lock engages.

When one wheel begins to slip, engage differential lock by pressing switch (A). Indicator light on display panel will light. Disengage differential lock by pressing either brake pedal.
