Operator Station Functions

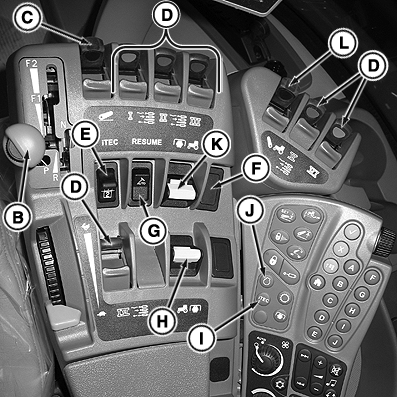

RXA0119977-UN-07SEP11
CommandARM Controls With IVT/AutoPowr Transmission And Six SCVs Shown

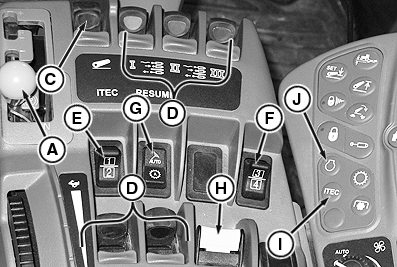

RXA0109051-UN-28JUL10
CommandARM Controls With Power Shift Transmission Shown

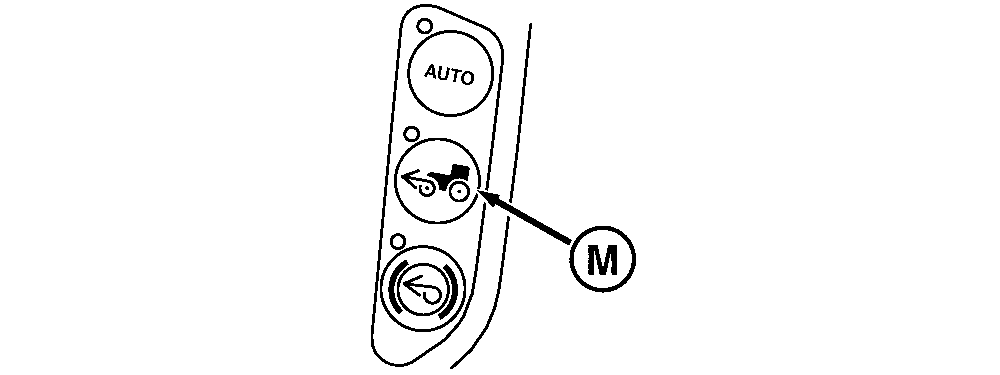

RXA0119766-UN-17AUG11
MFWD Button
RXA0119767-UN-17AUG11
Differential Lock Button

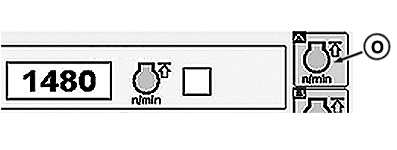

RXA0119768-UN-12SEP11
Engine Page With FieldCruise
Intelligent Total Equipment Control, iTEC allows multiple reoccurring tasks to be performed with the touch of one switch (E) 1.
CAUTION: Do not operate front loaders in conjunction with Intelligent
Total Equipment Control (iTEC™) to avoid sudden movements and
possible accidents.
|
iTEC Functionality |
||
|---|---|---|
|
Item |
Function(s) |
|
|
A |
PowerShift Transmission Lever |
Upshift or Downshift in Forward Gear for PowerShift Transmission |
|
B |
IVT/AutoPowr / Set Speed Adjuster |
Change Set Speed |
|
C |
Rear Hitch Lever |
Raise, Lower |
|
D |
SCV Levers |
Extend/Retract/Float/Cancel |
|
E |
Sequence Switch |
1 and 2 |
|
F |
Sequence Switch |
3 and 4 |
|
G |
APS Resume Switch (PST Transmission Only) |
Resume |
|
H |
Rear PTO |
On/Off |
|
I |
iTEC Short Cut Button |
Alternative Method Of Navigating To iTEC Pages |
|
J |
Engine Short Cut Button |
Method Of Navigating To Engine Page To Set FieldCruise |
|
K |
Front PTO |
On/Off |
|
L |
Front Hitch |
Raise, Lower |
|
M |
MFWD |
On/Off/Auto/Brake Assist |
|
N |
Differential Lock Button |
On/Off |
|
O |
FieldCruise Adjustment Page |
Set FieldCruise |
|
1 Sequence 3 and 4 can be added when Field Installed
Kit is installed through your John Deere dealer.
|
RD47322,00005A4-19-20120507 |
