Page Structure

NOTE:

RXA0116785
RXA0116785-UN-16MAY11

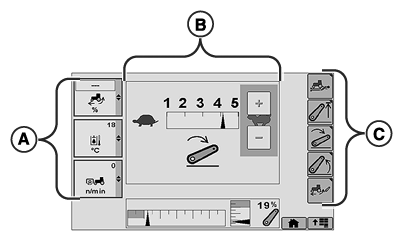

Example of Page Structure

A - Left Region

B - Center Region

C - Right Region

Pages are divided into left, center, and right regions. Displayed page shown is reference only. Actual pages may appear differently due to connection of optional devices and tractor configuration.

Left Region (A), Center Region (B) and Right Region (C) selections will be active on most pages.

  • A — Left Region: allows operator to choose and monitor three boxes at a time. Each box displays an ongoing function or specific tractor status.
  • B — Center Region: allows operator to view and change tractor settings in a wide variety of applications.
  • C — Right Region: displays softkey options available to the operator from current page.

Selecting a Right Region softkey displays a new page, function, or allows changing settings.

Left Region boxes are displayed in a strip of three individual boxes to be monitored while allowing operator to focus on specific functions active in page Center Region.
