Viewing Basic Diagnostic Readings

RXA0116490-UN-12MAY11

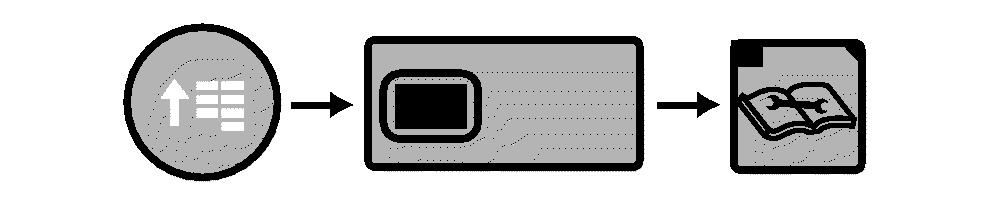

CommandARM Menu Button → Display Softkey → Diagnostics Softkey

Basic display diagnostics such as operating voltage, and CAN bus status can be found on the Diagnostics Readings Page.

This information maybe requested by your John Deere dealer to aid diagnostics.

1. Select Menu button.

2. Select Display softkey.

3. Select Diagnostics softkey.

4. System diagnostics are located on Display Settings Readings page.
