Draining Water Separator

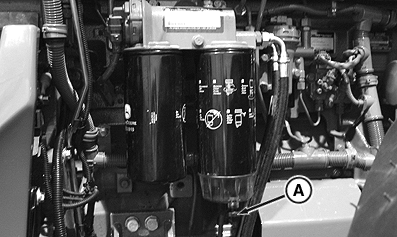

RXA0106508-UN-23FEB10

A - Drain Valve Nut

SERVICE INTERVAL — DAILY OR 10 HOURS

NOTE: When separator sensor identifies water in the fuel system, the service alert indicator will flash on the corner post display. An alarm will sound for five seconds and a corresponding message appears on the CommandCenter display.

NOTE: Water in fuel collects in the bottom of the fuel filters. Loosening drain valve nut (A) causes tabs (B) to drop down allowing water to drain.

Turn drain valve (A) on bottom of separator counterclockwise all the way open to drain accumulated water.
