Lubricating Hinge Pins—Heavy-Duty Gudgeon With Tapered Roller Bearings

RXA0108414-UN-03AUG10

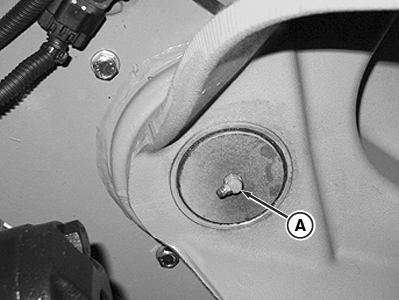

Upper Hinge Pin Fitting

RXA0108418-UN-03AUG10

A - Upper Hinge Pin Fitting

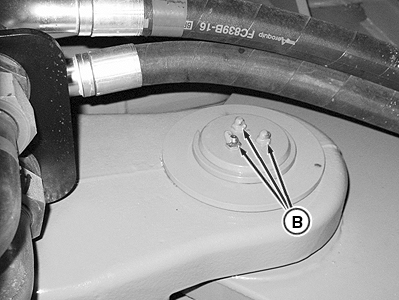

B - Three Lower Hinge Pin Fittings

SERVICE INTERVAL — 50 HOURS

CAUTION: Stop engine and remove key before working in hinge area.

Lubricate one upper (A) and three lower (B) gudgeon hinge pin fittings with John Deere HD grease specified in Fuels, Lubricants and Coolant Section.
