Changing Engine Oil and Filter - 9410R-9460R-9510R-9560R Tractors

RXA0114975-UN-11MAY11

RXA0109025-UN-18MAY11

RXA0110096-UN-01SEP10

RXA0110097-UN-10DEC10

A - Engine Drain Fitting

B - Oil Filter

C - Fill Cap

D - Fill Tube

E - Crosshatch Area

SERVICE INTERVAL

SCHEDULED — 500 HOURS *

Crankcase Fill Capacities with Filter

Interim Tier4/EU Stage III B PowerTech™ PSX1.............. 48.0 L (12.7 gal)

Tier2/EU Stage II PowerTech™2.............. 60.0 L (15.8 gal)

* Interval can vary depending upon factors such as type of oil and fuel used, or operating conditions. See notes below.

IMPORTANT: Sulfur content should not exceed 0.10%. Sulfur content less than 0.10% is preferred. Refer to Fuel, Lubricants and Coolant section for more information on oil change intervals.

NOTE: The initial break-in service interval of a new or rebuilt wet sleeve engine with Break-In Plus must go at least 100 hours to assure the surface mating of the rings and liners has had an opportunity to occur. The 100 hour minimum applies to all new or rebuilt engines. The maximum service interval is the same as the service interval recommendations listed in Engine Oil and Filter Service Intervals for your engine. To confirm which engine your tractor is equipped with, see Identification Numbers Section - Record Engine Serial Number in this Operator's Manual.

For subsequent oil changes, see Engine Oil and Filter Service Intervals for your engine located in the Fuels, Lubricants, and Coolant Section of this Operator's Manual.

1. Operate engine approximately 5 minutes to warm oil.

2. Stop engine.

3. NOTE: Oil flow can be directed by attaching a hose to the drain fitting.

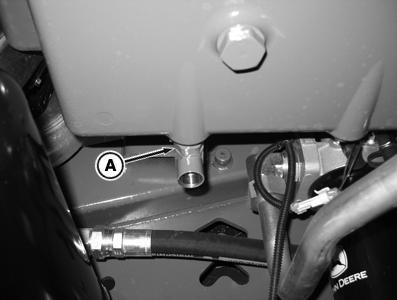

   Turn crankcase drain fitting (A) to drain engine oil.

4. Wait a few minutes, then tighten fitting after oil is completely drained.

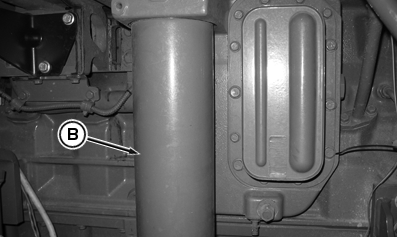

5. Remove filter (B) and remove old gasket. Clean filter mounting surface with clean dry cloth.

6. Apply a thin film of oil to new gasket and install new filter.

7. Hand-tighten filter element, then turn filter element 1-1/4 turn after gasket contact. Filter wrench is required. Do not overtighten.

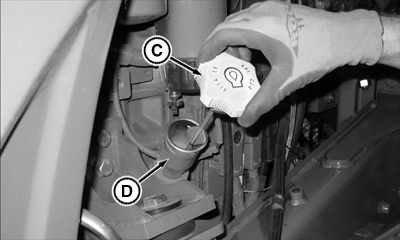

8. Remove engine oil fill cap (C) and refill crankcase using fill tube (D) with seasonal viscosity grade oil. (See Fuels, Lubricants, and Coolant Section.)

9. Start and run engine for a two minutes. Then stop engine and check for oil leaks.

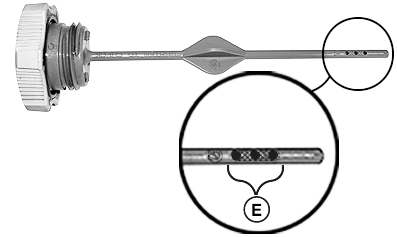

10. NOTE: Crosshatch area is considered FULL. Engine oil level indicator is a dipstick with a "crosshatch" area with a "safe" zone. Anywhere in the dipstick crosshatch safe zone is considered full.

    Recheck oil level with dipstick to ensure level is in crosshatch “safe” zone area.
