Checking Dual Beam Radar Sensor

RXA0108404-UN-28JUN10

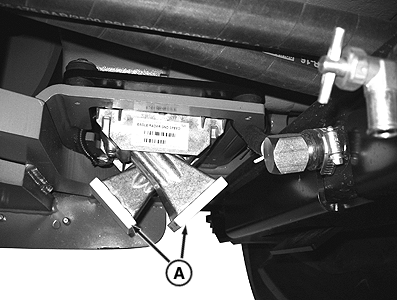

Dual Beam Radar

A - Sensor Horn

SERVICE INTERVAL — 500 HOURS

Check and clean radar sensor depending on operating conditions.

IMPORTANT: Inspect radar sensor horns for dirt or debris build up, which affects accuracy performance.

Avoid use of high-pressure washer nozzle pointed directly at radar.

Avoid damage to radar and wiring harness when using sharp tools to remove dirt or packed mud around radar.

Clean radar sensor horns (A) with warm water and mild soap.

Dry with clean soft cloth.
