Clean Fuel Tank Vent Filters

RXA0116115-UN-10MAY11

Left Rear Cab Panel

RXA0116117-UN-10MAY11

Fuel Tank Vent Filters

A - Screws

B - Left Rear Cab Panel

C - Vent Filters

SERVICE INTERVAL — 1000 HOURS *

* Interval can vary according to operating conditions

NOTE: Fuel tanks are vented through two fuel vent filters (C) located behind left and rear cab panels.

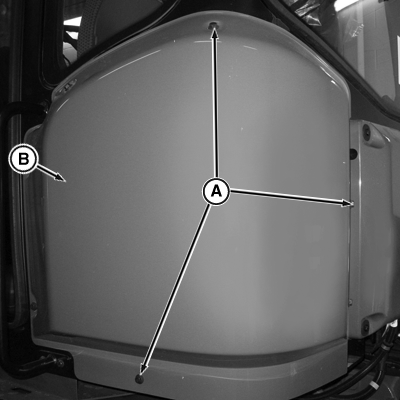

Remove left rear cab panel retaining screws (A) and remove cab panel (B).

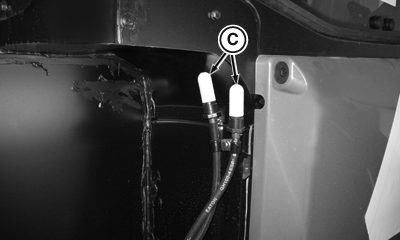

Access to two the left and right fuel tank vent filters (C).

Release retaining hose clamps to remove vent filters from hoses.

Clean filters in soapy detergent solution.

Use compressed air to blow dry each filter.

Attach filters to hoses and secure with retaining hose clamps.

IMPORTANT: Do not over tighten retaining screws which can result in damage to cab panels.

Reinstall left rear cab panel and tighten the retaining screws.
