Testing Coolant and Add Coolant Conditioner

RXA0106514-UN-23FEB10

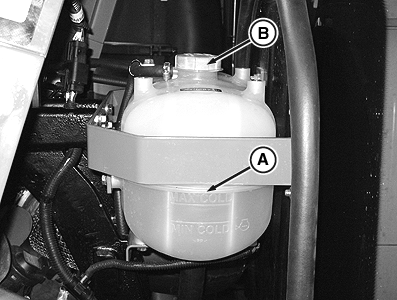

Surge Tank Cap-13.5 L Engine (Shown)

A - Coolant Level

B - Cap

SERVICE INTERVAL — 1000 HOURS

1. CAUTION: Avoid personal injury. Do not remove fill cap when engine is hot. Stop engine and wait until engine has cooled.

2. Slowly turn de-aeration tank cap (A) to relieve pressure. Remove cap.

   NOTE: De-aeration tank will not be full of coolant when cap is removed. When looking in tank, if coolant tank is at least half full, do not add additional coolant.

3. Test coolant using TY26605 COOL-GARD™II 3-way test strips available from your John Deere dealer.

4. NOTE: Follow instructions on back of reader card in test strip pack when testing coolant.

   Add TY26603 COOL-GARD II Coolant Extender available from your John Deere dealer as indicated by the color matrix on reader card in test strip pack. If tank is too full, drain a small amount of coolant from system before extender is added.

5. NOTE: Cap gasket should be visually checked for sealing effectiveness. A good functioning gasket should have the imprint of the mating surface with no apparent scratches or leak paths.

   Install de-aeration tank cap and lower hood.
