Service Batteries and Connectors

TS204
TS204-UN-23AUG88

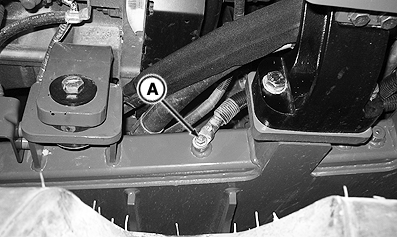

RXA0117956
RXA0117956-UN-13JUN11

A - Single Point Ground (SPG) (-) Cable

Disconnect the Single Point Ground (SPG) (-) cable (A), on left side of engine, from tractor frame before servicing batteries.

SERVICE INTERVAL — ANNUALLY

NOTE: Factory installed batteries are maintenance free and require no additional service.

However in certain conditions such as long periods of operation at high ambient temperatures or excessive engine cranking, may require adding water. See label on battery.

CAUTION: Never use compressed air to clean batteries. It can cause a build up of static charge leading to potential injury.

Battery gas can explode. Keep sparks and flames away from batteries. Use a flashlight to check battery electrolyte level.

Never check battery charge by placing a metal object across the posts. Use a voltmeter, load tester or hydrometer.

Always remove battery ground cable (A) first and connect it last. Do not let disconnected ground terminal touch metal surface.

WARNING: Battery posts, terminals, and related accessories contain lead and lead compounds, chemicals known to the State of California to cause cancer and reproductive harm. Wash hands after handling.

CAUTION:

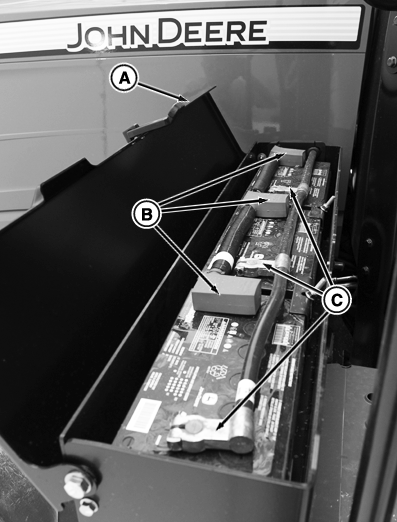

RXA0118803
RXA0118803-UN-14JUL11

A - Battery Box Latch

B - Positive Battery Terminals

C - Negative Battery Terminals

Avoid contact with poisonous sulfuric acid in battery electrolyte. Battery acid can burn skin, damage clothing, and cause blindness if splashed into eyes.

  1. Pull battery box latch (A) out to release top cover.

  2. Lift cover to access batteries.

  3. Disconnect negative terminals (C) from batteries.

  4. Disconnect positive terminals (B) from batteries.

  5. Clean terminals and battery posts using a baking soda and water solution.

  6. Remove any corrosion with a terminal brush.

  7. Rinse with clean water and air dry.

  8. Connect positive battery cables and apply thin coating of grease.

  9. Connect negative battery cables and apply thing coating of grease.

  10. Close battery box cover.

  11. Connect negative cable to tractor frame.

NOTE: Keep all battery terminals (B) and (C) clean and tight.

For replacement batteries follow manufacturer's recommendations.

OU1092A,000013C-19-20110715
