Inspecting Seat Belts

RXA0108482-UN-12JUL10

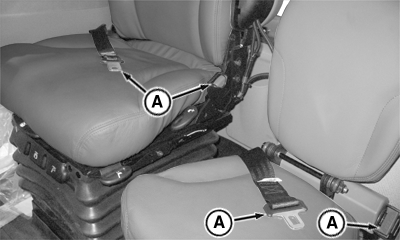

A - Seat Belts

SERVICE INTERVAL — ANNUALLY

CAUTION: If the seat belt system, including the mounting hardware, buckle, belt or retractor shows any sign of damage such as cuts, fraying, extreme or unusual wear, discoloration or abrasion, the entire seat belt system should be replaced immediately.

Replace the belt system only with replacement parts approved for your machine.

Inspect seat belts (A) and mounting hardware. If seat belts need to be replaced, see your John Deere Dealer.
