Replacing Hydraulic Filters

RXA0113420-UN-25JAN11

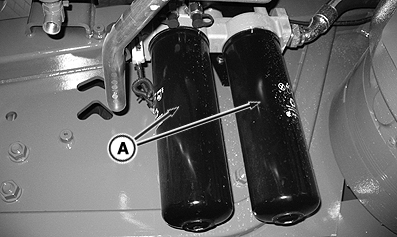

Hydraulic Oil Filters

A - Hydraulic Oil Filters

SERVICE INTERVAL —

INITIAL — 1500 HOURS

SCHEDULED — 1500 HOURS *

* Interval can vary according to operating conditions

1. NOTE: Use a drip pan to catch any oil spilled when hydraulic oil filters are removed.

   Replace hydraulic filters (A), located under engine, at scheduled service interval or if indicator light comes on.

2. Install new filters and tighten one half turn after seal contacts filter housing base.

3. Check transmission/hydraulic/axle reservoir oil level and fill as required.

   See Checking Transmission-Hydraulic-Axle Oil Level in Lubrication and Maintenance-Daily or 10 Hour Service Section.
