CommandARM™ Controls

CommandARM™—Left Side

RXA0099690-UN-31OCT08

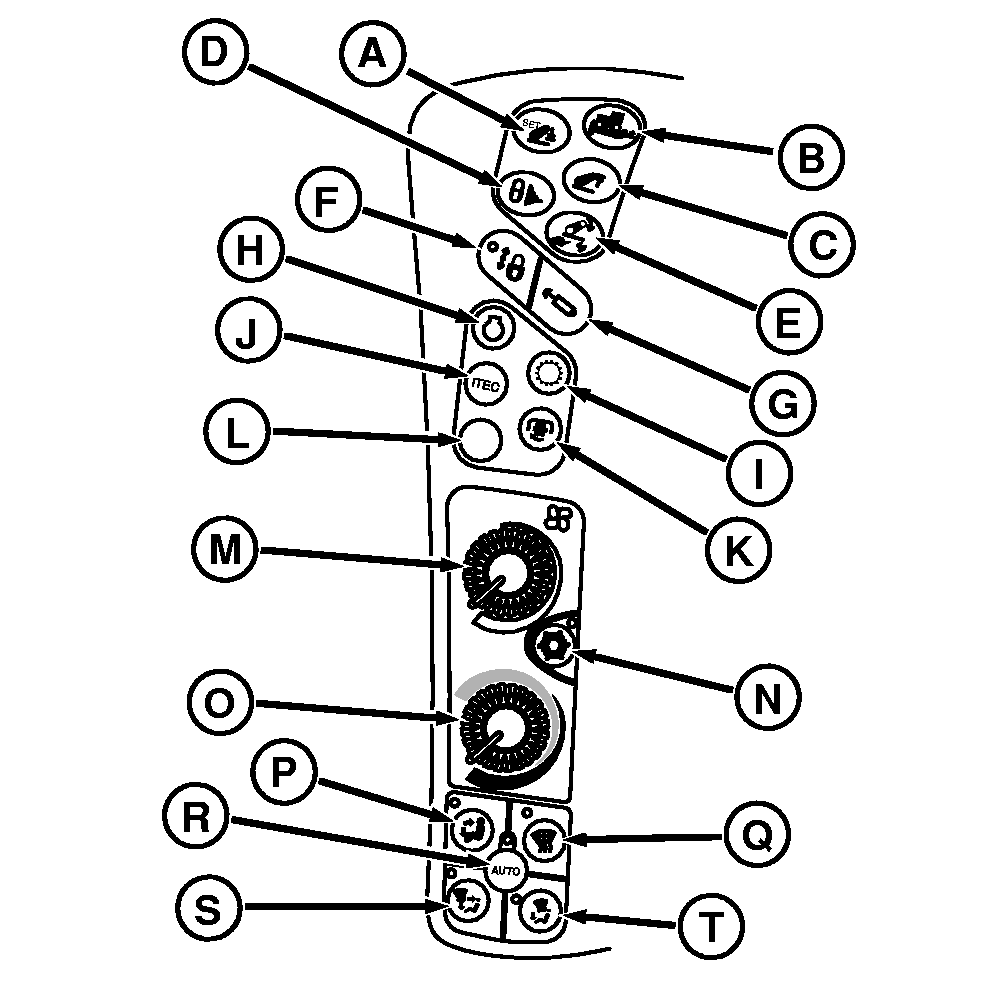

CommandArm™ Controls —Left Side

A - Hitch Lower Limit

B - Load Depth Settings

C - Hitch Upper Limit

D - Transport Lock

E - Hitch Rate Of Drop

F - Transport Lock—SCV

G - SCV

H - Engine Settings

I - Transmission Settings

J - iTEC™

K - PTO Settings

L - Not Used

M - Fan Speed *

N - Air Conditioner Button *

O - Temperature Control Knob *

P - Cab And Floor *

Q - Defrost *

R - ClimaTrak™ *

S - Defrost, Cab And Floor Vents *

T - Windshield And Floor Vents *

Controls indicated with an asterisk (*) are installed only on ClimaTrak™ equipped tractors.

CommandARM™—Right Side

RXA0110003-UN-31AUG10

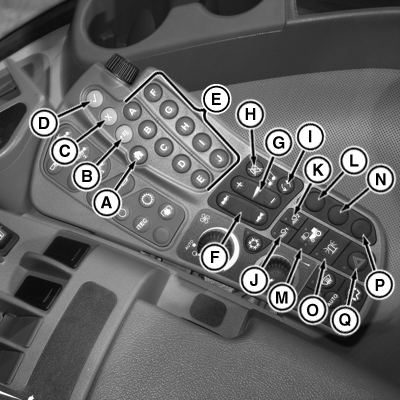

CommandArm™ Controls—Right Side

A - Home Button

B - Menu Button

C - Cancel Button

D - Confirm Button

E - Soft Keys

F - Radio Preset/Track Control

G - Radio Volume

H - Radio Mute

I - Radio Source

J - Field Lights 1 Selection

K - Field Lights 2 Selection

L - Not Used

M - Road Lights

N - Not Used

O - Beacon

P - Not Used

Q - Emergency Flashers
