SCV Lever—Neutral Position
RXA0109968-UN-30AUG10

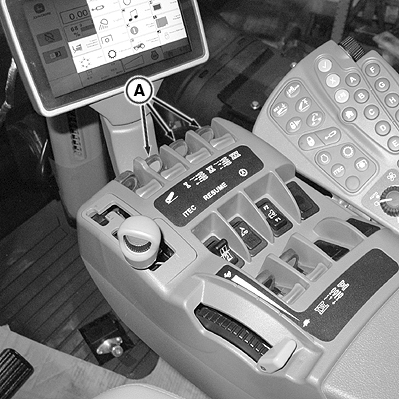

A - Neutral Position
Neutral (A) allows flow to continue until timed detent has expired. If no timed detent was "commanded", then both extend and retract valves will be off.NOTE: SCV control lever should be in neutral position at tractor start up.
Levers in extend or retract positions automatically return to neutral when released. Float position will remain detented.
Any position other than neutral or float will be ignored, until lever is cycled to neutral after engine start up.
|
