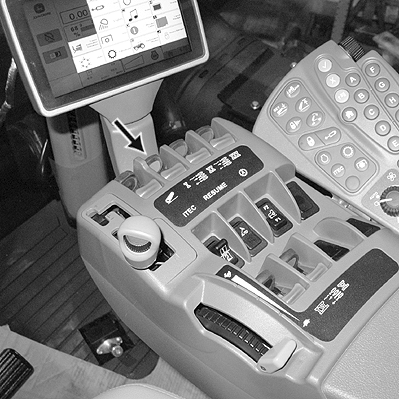

SCV Lever—Extend and Extend Detent Position

Extend

RXA0109969-UN-30AUG10

Pull lever slightly to rear of neutral. This slowly extends cylinder at a variable flow rate. (See Adjusting SCV Flow Rate in this section.)

Pull lever all the way rearward to extend remote cylinder at maximum rate. Detent operation mode depends on SCV detent selected.

NOTE: Time setting is ignored in extend position.

Extend Detent

Pull lever rearward to "click" detent position and release. Lever will return to neutral position, but flow will continue at rate set on TouchSet panel. (See Adjusting SCV Flow Rate and Adjusting Timed Detent in this section.)

Flow timing begins when lever is moved into detent. SCV flow time should be adjusted so cylinder will be fully extended when time has elapsed.

NOTE: If lever is not returned from detent to neutral in less than 0.8 seconds, detent cancels.

Detent can be cancelled by moving SCV lever forward or rearward from neutral.
