CommandCenter Pages Description And Functions

At the iTEC Operation page:

RXA0108933-UN-29JUL10

iTEC Short Cut Button

RXA0110305-UN-08DEC10

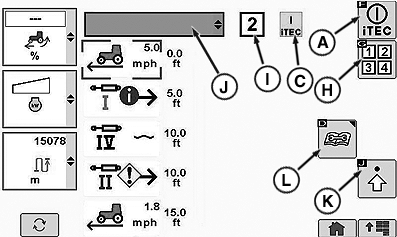

iTEC Operations Page With Factory Installed 1 And 2 Sequence Button

RXA0108636-UN-28JUL10

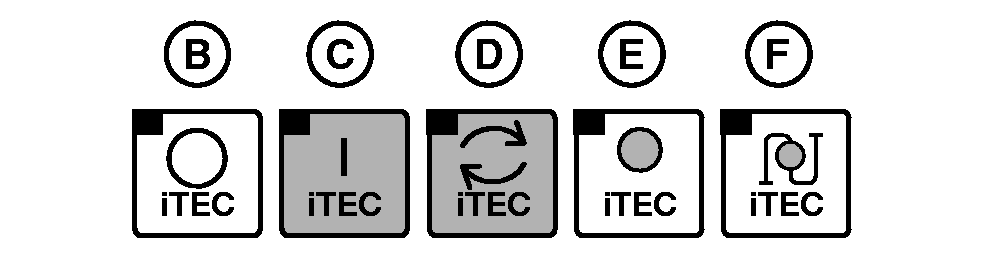

Application Status Options

RXA0107036-UN-16APR10

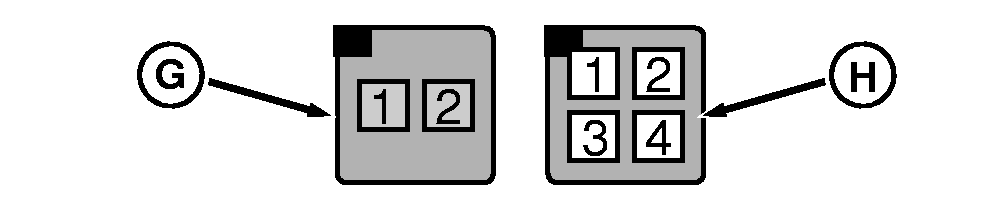

Factory Installed Sequence SoftKey 1 And 2 And Field Installed Kit Option With Sequence Softkey 1 Through 4

A - iTEC ON/OFF Softkey

B - OFF Indicator

C - ON Indicator

D - Sequence Executing Indicator

E - Learning Mode Indicator

F - Learning Distance Mode Indicator

G - Sequence Softkey (1 and 2)

H - Sequence Softkey (3 and 4) ¹

I - Sequence In Process Indicator Box

J - Implement

K - Advanced Settings

L - Status Page

At the iTEC Edit page:

RXA0107044-UN-25MAY10

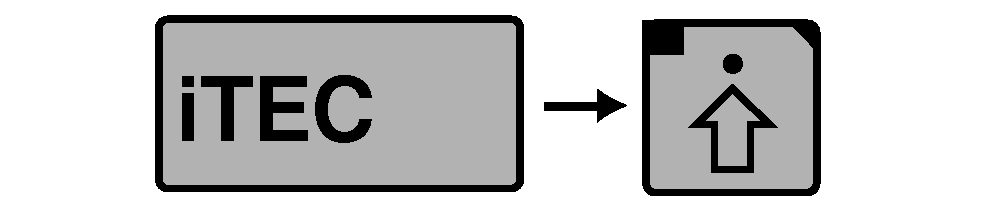

iTEC→ Advanced Settings

RXA0110560-UN-22SEP10

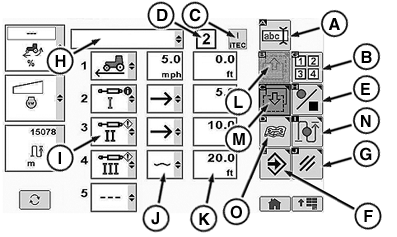

iTEC Edit Page With Factory Installed 1 And 2 Sequence Softkey

1. Select iTEC.

2. Select Advanced Settings softkey.

• A—Edit Implement Name Softkey navigates to edit implement name
• B—Sequence Softkey toggles between sequence 1 and 2²
• C—iTEC is ON
• D—Sequence Box displays sequence 2 is active
• E—Start/Stop Record Sequence
• F—Enter/Save Softkey
• G—Cancel Softkey
• H—Implement Identification Box
• I—Function Drop Down Box
• J— Operation Drop Down Box
• K— Distance Input Box (Distance at which function listed in left column is triggered after sequence execution.)
• L— Previous Page Softkey
• M— Next Page Softkey
• N—Learn Distance Only Softkey³
• O—Diagnostics Softkey

At the iTEC™ Status Page

RXA0110791-UN-08OCT10

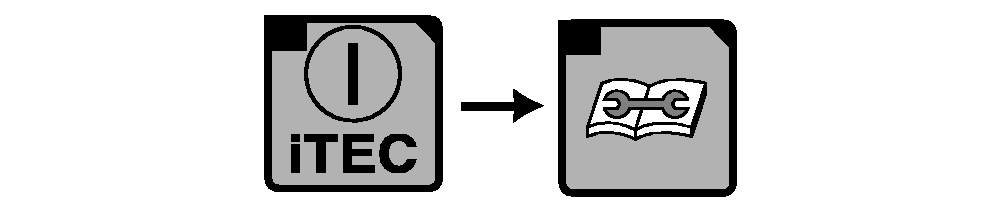

iTEC™→ Status Page

RXA0110793-UN-08OCT10

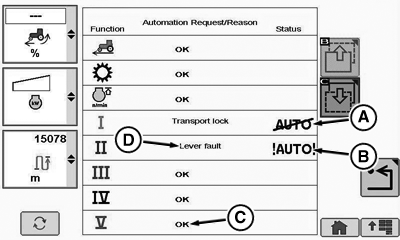

iTEC™ Status Page

1. Select iTEC™.

2. Select Page Status oftkey.

• A—Manual Control of Function
• B—iTEC execution of function not allowed
• C—Status OK
• D—Reason function may not be automated.

NOTE: This page will also indicate the commanded requests from the iTEC system if executing.

All Function/Operation/Distance Options found in center region are indicated below.

RXA0110863-UN-29OCT10

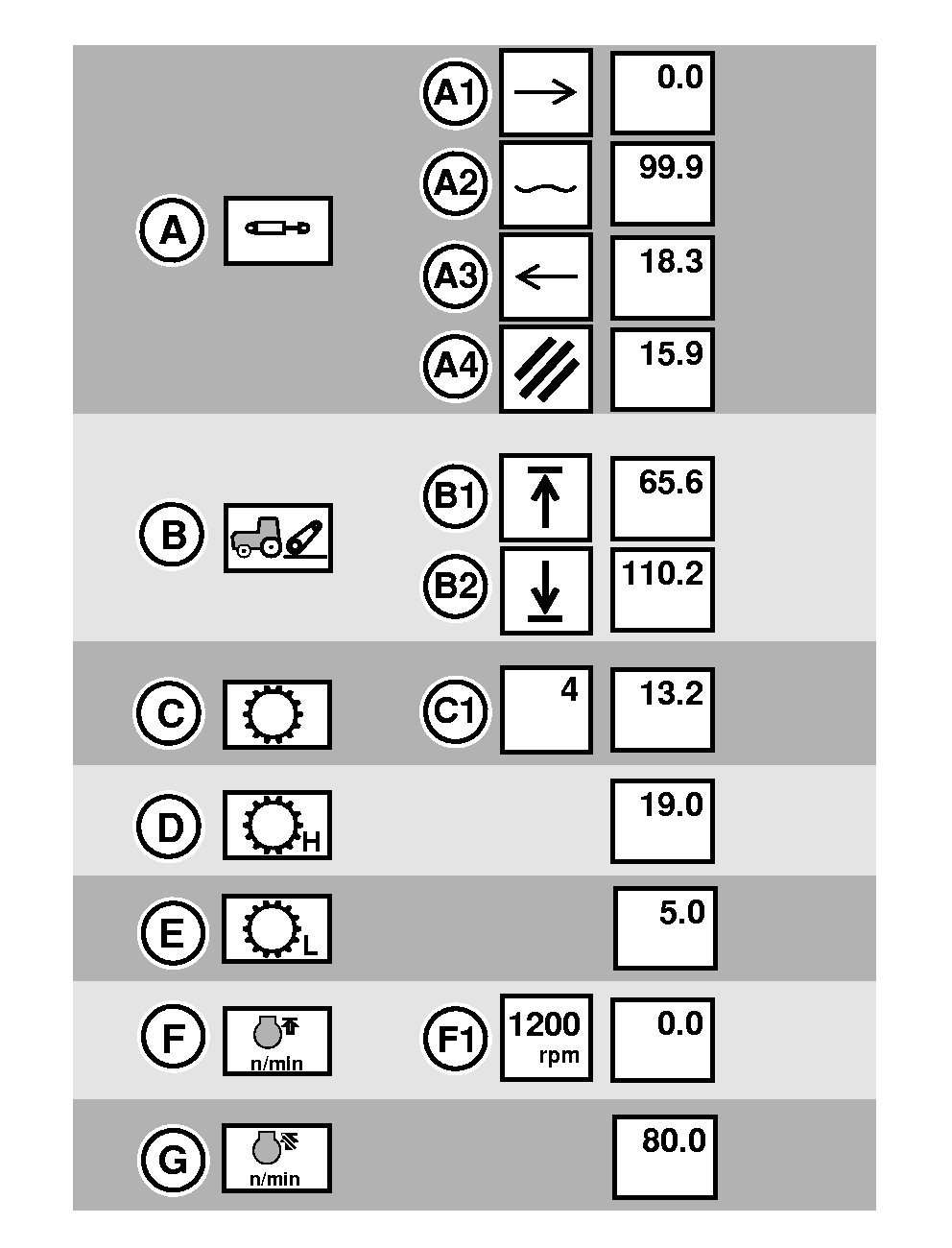

First Column: Function, Second Column: Operation, Third Column: Distance

RXA0110864-UN-29OCT10

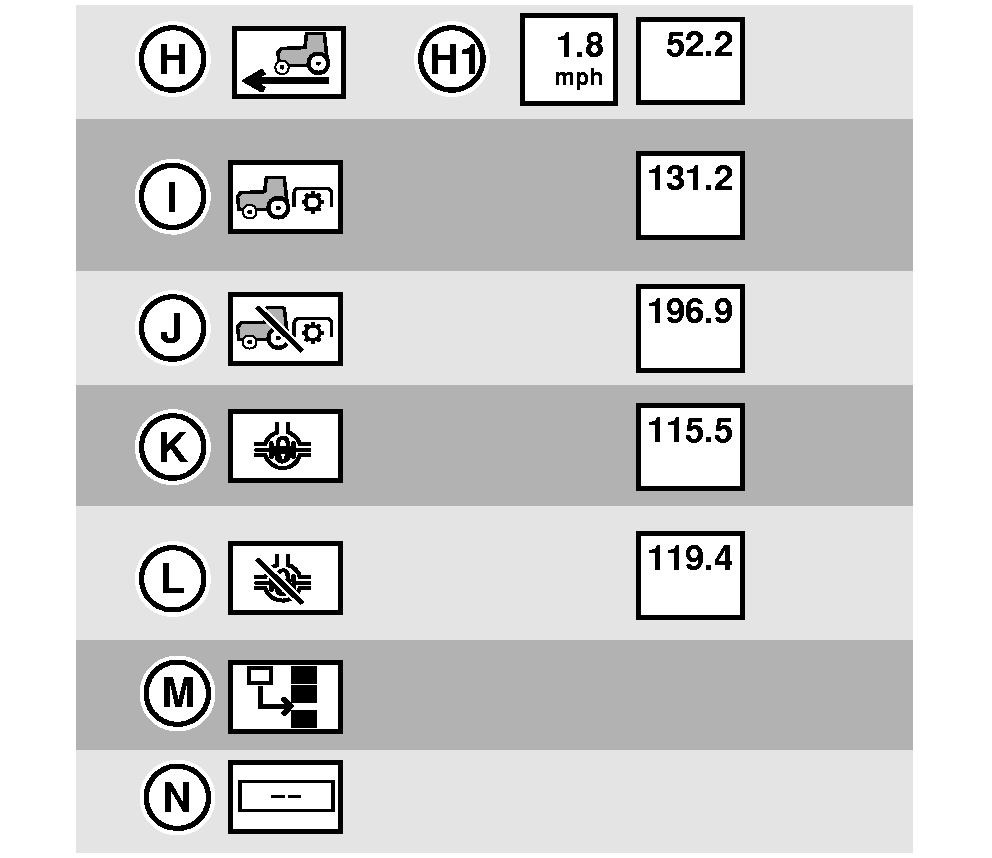

First Column: Function, Second Column: Operation, Third Column: Distance—Continued

• A—SCV's (I through VI)
  • A-1 Extend
  • A-2 Float
  • A-3 Retract
  • A-4 Cancel

• B—Rear Hitch
  • B-1 Raise
  • B-2 Lower
• C—PST
  • C-1 Gear
• D—MST Hi Range
• E—MST Low Range
• F—FieldCruise™
  • F-1 RPM (1100—2200)
• G—FieldCruise™ Off
• H—Set Speed ⁴
  • H-1 Speed

    (0.8—55 km/h (.5—34.4 mph) both in increments of .1.

• I—Rear PTO
• J—Rear PTO Off
• K—Differential Lock
• L—Differential Lock Off
• M Insert (Used to shift function down while in edit mode.)
• N Delete

Distance options are entered either in metric or US/Imperial distances and using either key pad or input box

RXA0107389-UN-16APR10

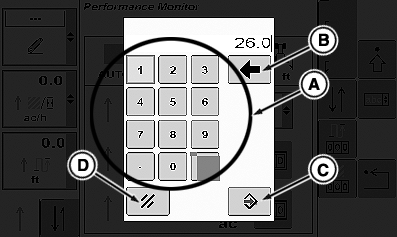

Key Pad To Set Distance

RXA0110561-UN-22SEP10

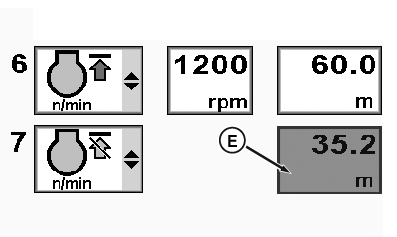

Distance Input Box On iTEC Edit Page

A - Key Pad

B - Back Space

C - Save/Enter

D - Cancel

E - Input Box

1. Select Distance input box.

   NOTE: To make a correction on keypad, select Backspace key (B).

2. When keypad displays, select desired distance by selecting appropriate keypad (A) numbers, then select enter button (C). Cancel by selecting cancel button (D).

Entering metric units of measure or when using Thumb wheel:

1. Select Distance input box (E).

2. Input box highlights, then scroll forward to increase numbers or rearward to decrease value in input box.

3. Select CommandARM™Confirm button.

NOTE: A - Information Alert, Function Limited - will display if function is not in correct state when sequence is in passive mode, programmed, but not executing. (Ex: PTO Switch Off).

RXA0110309-UN-22SEP10

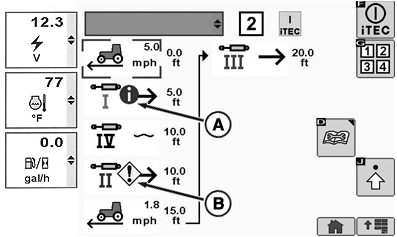

Function Limited Alerts

A - Information Alert— Function Limited

B - Service Alert —Function Limited

B - Service Alert, Function Limited - Function will not execute while in execution mode and some conditions may be related to a Service Alert for that function. (Ex: PTO Switch Fault).

NOTE: For more information about service or information alerts, go to the iTEC Status Page shown earlier in this section.

Function Limited	Corrective Action
Differential Lock	Vehicle speed is above threshold to turn off differential lock.
PTO	Switch is not in the ON-position.
Vehicle Speed	Right Hand Reverser (if equipped) is in Reverse
	Current Set Speed < 0,8kph
	Not in Efficiency Manager™ auto mode
Gear	Efficiency Manager™ not in manual mode.
Rear hitch	Rear Hitch Locked
SCV	SCV locked
FieldCruise™	Access Manager has FieldCruise™ locked
