Entering Or Editing Equipment Name

1. Select iTEC


   RXA0098156-UN-07NOV08


   RXA0104067-UN-29JUL10

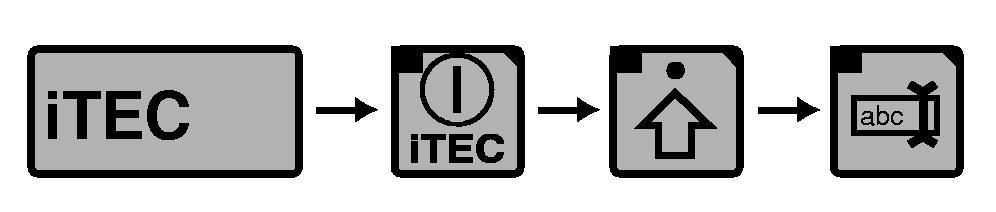

   iTEC→ iTEC On/Off→Advanced Settings→Edit Implement Name


   RXA0106095-UN-27JUL10

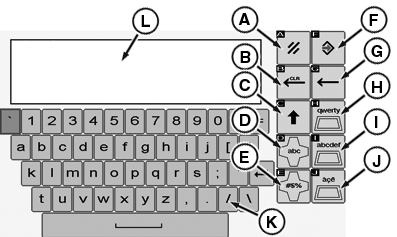

   Editing Page

---




2. SelectiTEC ON/OFF softkey.

3. Select Advanced Settings soft key.

4. Select Edit Implement Name softkey.

5. At the editing page:

   • A—Cancel Softkey allows operator to exit without making changes.
   • B—Clear Editing Box softkey clears editing box.
   • C—Toggles between upper and lower case editing keys.
   • D—Standard Alpha/Numeric English Key Board softkey
   • E—Special Character softkey changes alphabet key pad into special characters key pad option.
   • F— Save/Enter softkey allow operator after entry is made in editing box to enter data to operating page.
   • G— Back Space softkey moves editing box curser back one space.
   • H—Standard English Key Board softkey allows operator to choose standard English Key Board.
   • I—Lower Case softkey allows operator to input implement name in only lower case letters.
   • J—Numbers/Symbols softkey allows operator to input implement name in numbers or letters.
   • K—Key Board.
   • L—Editing Box.
