Learn Distance Only

RXA0110773-UN-09SEP10

iTEC→Advanced Softkey

RXA0110314-UN-11NOV10

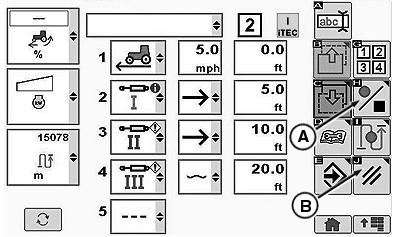

Edit Page

A - Learn Distance Softkey

B - Cancel Softkey

NOTE: Learn Distance can be used to either learn the distances for a sequence setup via EDIT or to just relearn distances for an existing sequence. The sequence needs to contain at least 2 functions to be able to start Learn Distance.

1. Select iTEC.

2. Select iTEC ON/OFF softkey.

3. Select Advanced Settings softkey.

4. For a sequence with at least 2 functions select Learn Distance softkey (A).

5. Drive a speed greater than 0.5 kph (0.31mph) and select the associated sequence switch at the desired position where each function shall get executed.

   NOTE: By selecting the sequence switch the highlighted function and distance are learned, the function executes, and the highlight moves to the next step.

6. Learn Distance ends automatically when all distances are learned.

7. To cancel learn distance, select Cancel softkey (B).
