Operator Station Description And Functions

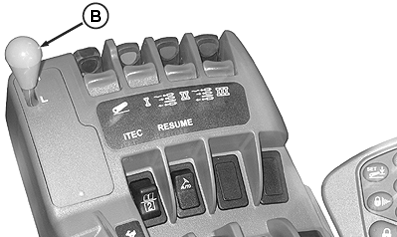

RXA0111030-UN-08OCT10

CommandARM™ With Manual Shift Transmission

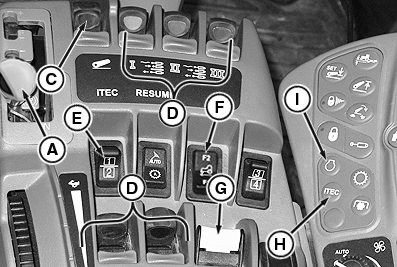

RXA0122114-UN-08NOV11

CommandARM™ Controls With Powershift Transmission Shown

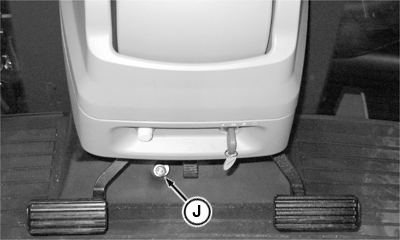

RXA0111034-UN-08OCT10

Differential Lock Button

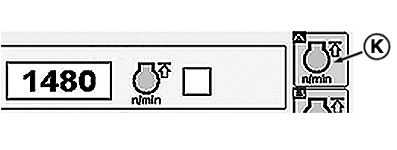

RXA0109049-UN-30JUL10

Engine Page With FieldCruise™

iTEC has two factory installed sequences in which learned functions are stored. A sequence is defined as the start of the first recorded function to completion of last recorded function. Example of two sequences would be, one sequence made up of a series of functions, operations and distances used at start of field and a second sequence used at a water way in the center of the field. Each program can include up to 20 functions. The programs remain in the memory until they are deleted or overwritten, even if the electrical current is switched off.

iTEC Functionality
	Item	Function(s)
A	Powershift Transmission Lever	Upshift or Downshift in Forward Gear for Powershift Transmission
B	MST Hi/Low Lever	Shift to Hi Side or Low Side
C	Rear Hitch Lever	Raise, Lower
D	SCV Levers	Extend/Retract/Float/Cancel
E	Sequence Switches	1 and 2 (Left Switch) 3 and 4 (Right Switch)
F	FieldCruise™ Switch	FieldCruise™ 1 and 2
G	Rear PTO	On/Off
H	iTEC Short Cut Button	Alternative Method Of Navigating To iTEC Pages
I	Engine Short Cut Button	Method Of Navigating To Engine Page To Set FieldCruise™
J	Differential Lock Button	On/Off
K	FieldCruise Adjustment Page	Set FieldCruise
