Service Advisor Remote (SAR ) (If Equipped)

Service Advisor Remote (SAR) provides the ability to remotely update vehicle controller software using John Deere™ telematics infrastructure. The SAR User Interface on CommandCenter™ Informs vehicle operator when a new software is available for downloading, provides interface for operator to accept or cancel payload downloading, provides interface for operator to accept to start controller software programming, and informs vehicle operator programming status and final result.

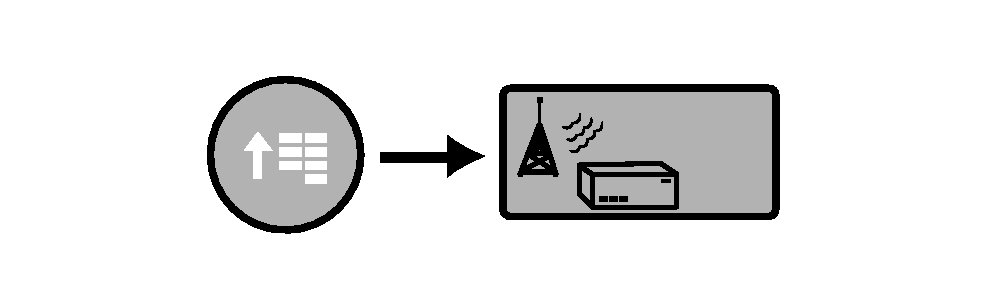

RXA0116558-UN-16MAY11

Service Advisor Remote

1. Select Service Advisor Remote icon.

2. When Remote Software Updates page displays, allows operator to:

   • Cancel Download
   • Download Software
   • Install Software
