Operating Tractor Implement Automation

1. Connect TIA equipment to tractor via ISO connection.


   RXA0098156-UN-07NOV08

   Main Menu


   RXA0111138-UN-07OCT10

   TIA Icon

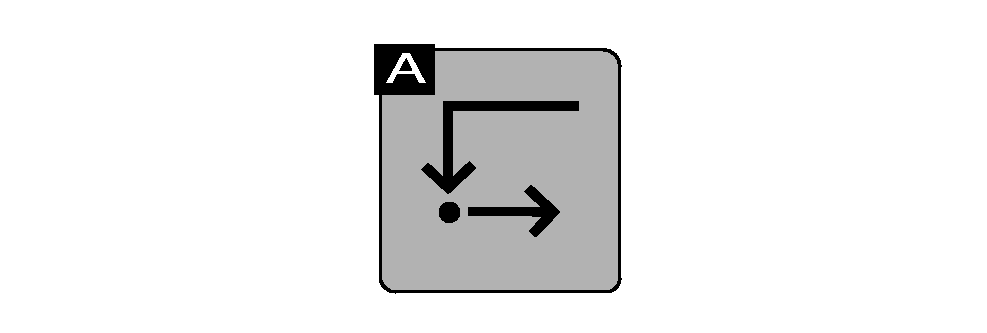

   RXA0109713-UN-18AUG10

   TIA Softkey

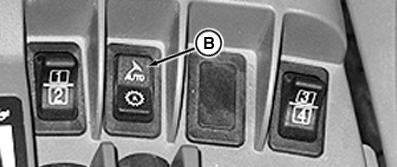

   RXA0110017-UN-14SEP10

   AutoTrac Switch

   A - TIA Softkey

   B - AutoTrac Switch

---




2. Select Main Menu button.

   NOTE: See Configuring Home Page to display TIA softkey on Tractor Automation Activation page.

3. At CommandCenter™ main menu, Select TIA Icon.

4. Select either TIA soft key (A) or AutoTrac™ switch (B).

5. Unknown Implement # previously displayed in Tractor Automation Activation page component list changes to the specific Implement name.

6. Follow implement Operator's Manual instructions to operate implement.
