Viewing Engine Hours

RXA0111703-UN-29NOV10

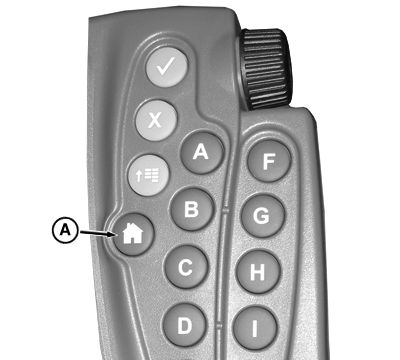

Home Page Button

RXA0111701-UN-29NOV10

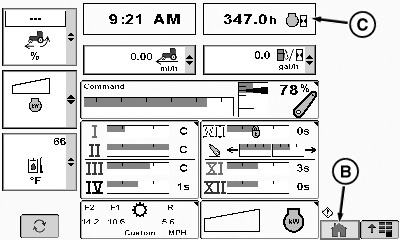

Default Home Page

A - Home Page Softkey

B - Home Page

C - Engine Hours

To view the total engine hours, select the home page (B) or select home page softkey (A) until default home page is shown. Engine hours will be displayed (C).
