High Flow Hydraulic Component Identification
RXA0112264-UN-29NOV10

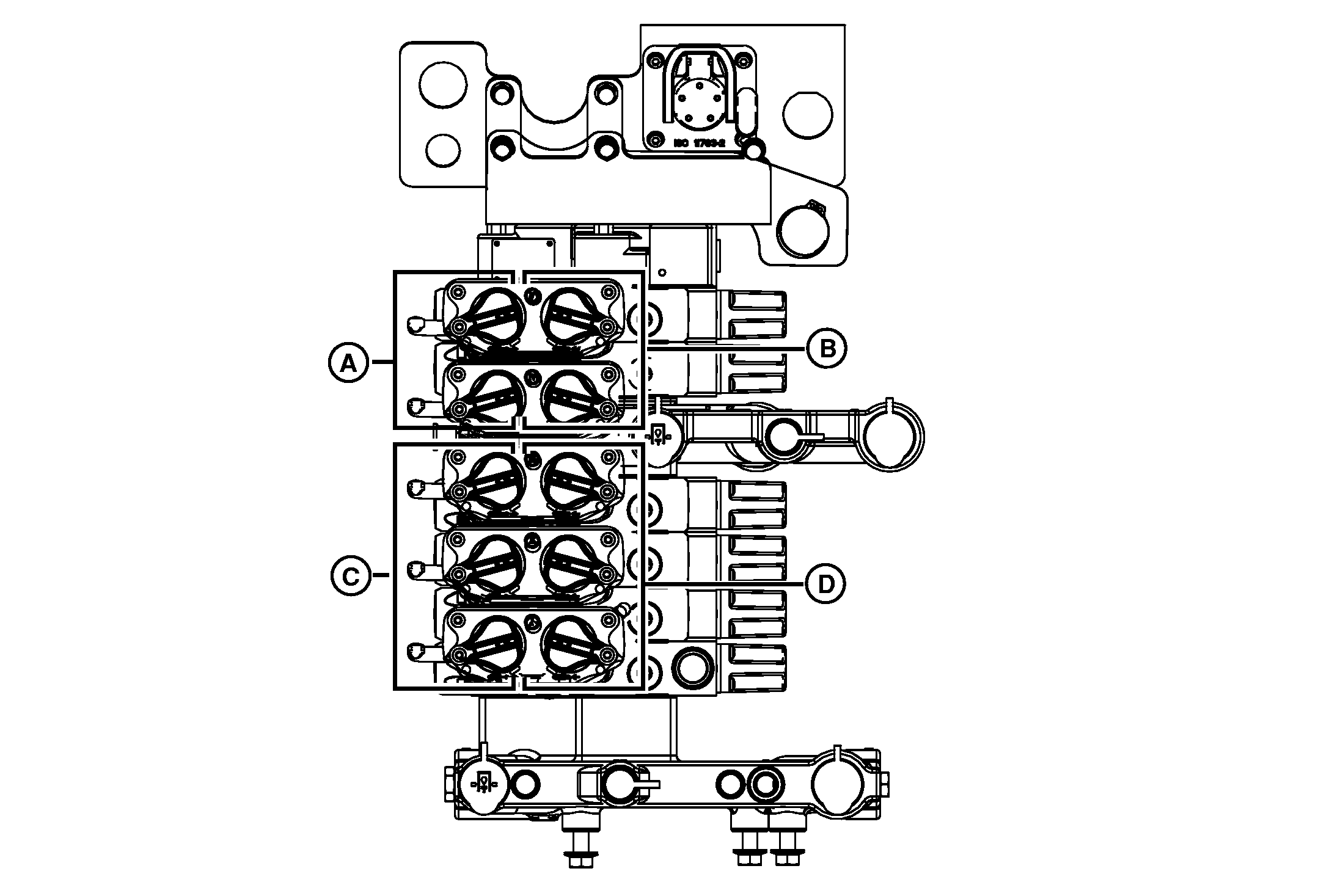

High Flow SCV Couplers Shown
A - Extend Ports 45cc Pump
B - Retract Ports 45cc Pump
C - Extend Ports 75cc Pump
D - Retract Ports 75cc Pump
NOTE: SCV covers are color coded for easy identification.
SCV Color Codes
|
SCV Number |
Corresponding Color |
|
SCV VI |
Gray |
|
SCV V |
Violet |
|
SCV IV |
Black |
|
SCV III |
Brown |
|
SCV II |
Blue |
|
SCV I |
Green |
|
OURX985,00000FE-19-20110521 |
