Jack Up the Tractor - Lifting Points

The illustrations show the recommended lifting points for jacking up the tractor. Use appropriate and suitable lifting device.

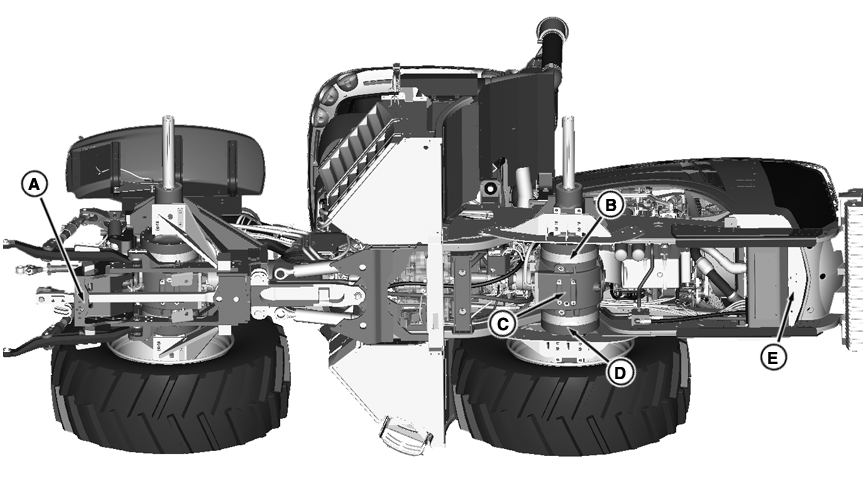

RXA0126205-UN-03MAY12

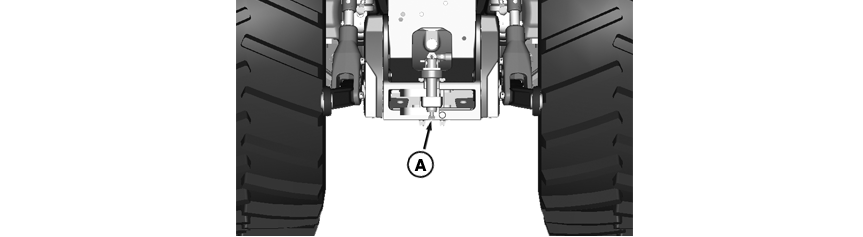

RXA0126206-UN-08JUN12

A- Raise Rear of Tractor, e.g. to Remove Rear Wheel.

B- Raise Right Side of Front Differential, e.g. to Remove Right Front Wheel.

C- Raise Center of Front Differential Housing.

D- Raise Left Side of Front Differential, e.g. to Remove Left Front Wheel.

E- Raise Front End of Tractor under the Basic Weight.

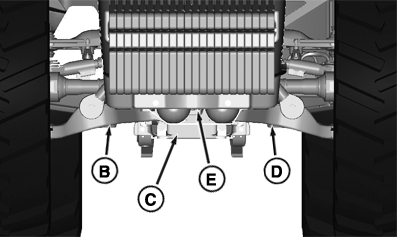

RXA0126093-UN-26APR12

Jack up the Front End of Tractor

B - Raise Right End of Front Differential, e.g. to Remove Right Front Wheel

C - Raise Center of Front Differential Housing.

D - Raise Left Side of Front Differential, e.g. to Remove Left Front Wheel

E - Raise Front End of Tractor under the Basic Weight

CAUTION:

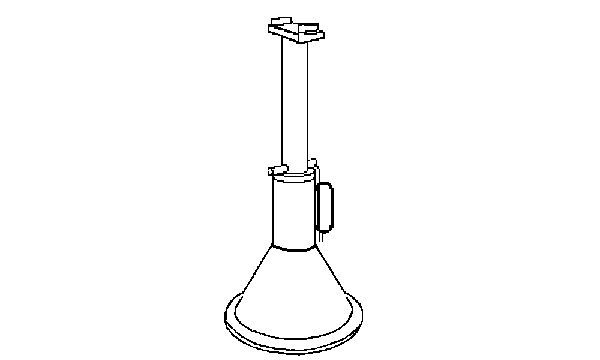

RXA0094500-UN-05JUN07

JT01778 Support Stands

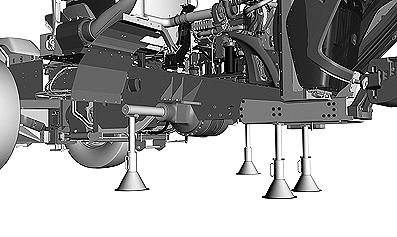

RXA0101151-UN-27MAR09

JT01778 Support Stands

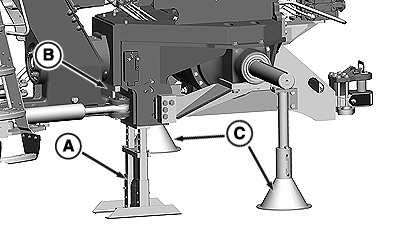

RXA0101408-UN-27MAR09

A - JT05725 Universal Support Stand

B - JDG660B Gudgeon Oscillation Stop

C - JT01778 Support Stands

Oscillation stop (B) must be installed to prevent oscillation during axle removal. Failure to do so may result in injury.

Jack up tractor on firm, level ground only.

Before doing any further work on the tractor, first secure it using suitable support stands. The special John Deere tools shown can be used for this purpose. These support stands are available from your John Deere dealer.
