Cleaning Optional Fuel Water Separator Filter Element (If Equipped)

NOTE: To replace filter element and filter housing gasket, See your John Deere dealer.

1. Turn off engine.

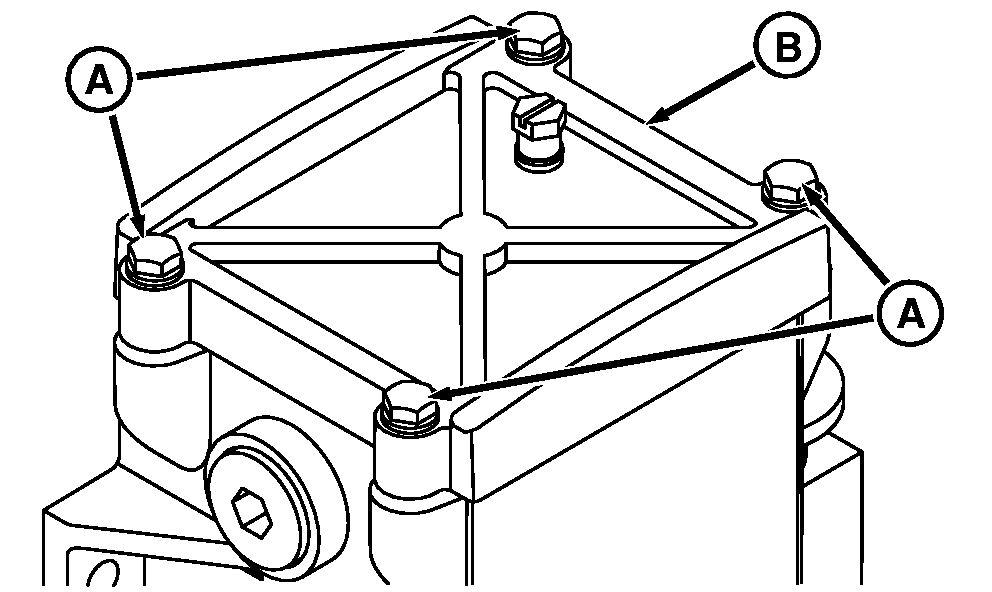

   RXA0089770-UN-14JUL06

   Remove Cap Screws


   RXA0089818-UN-14JUL06

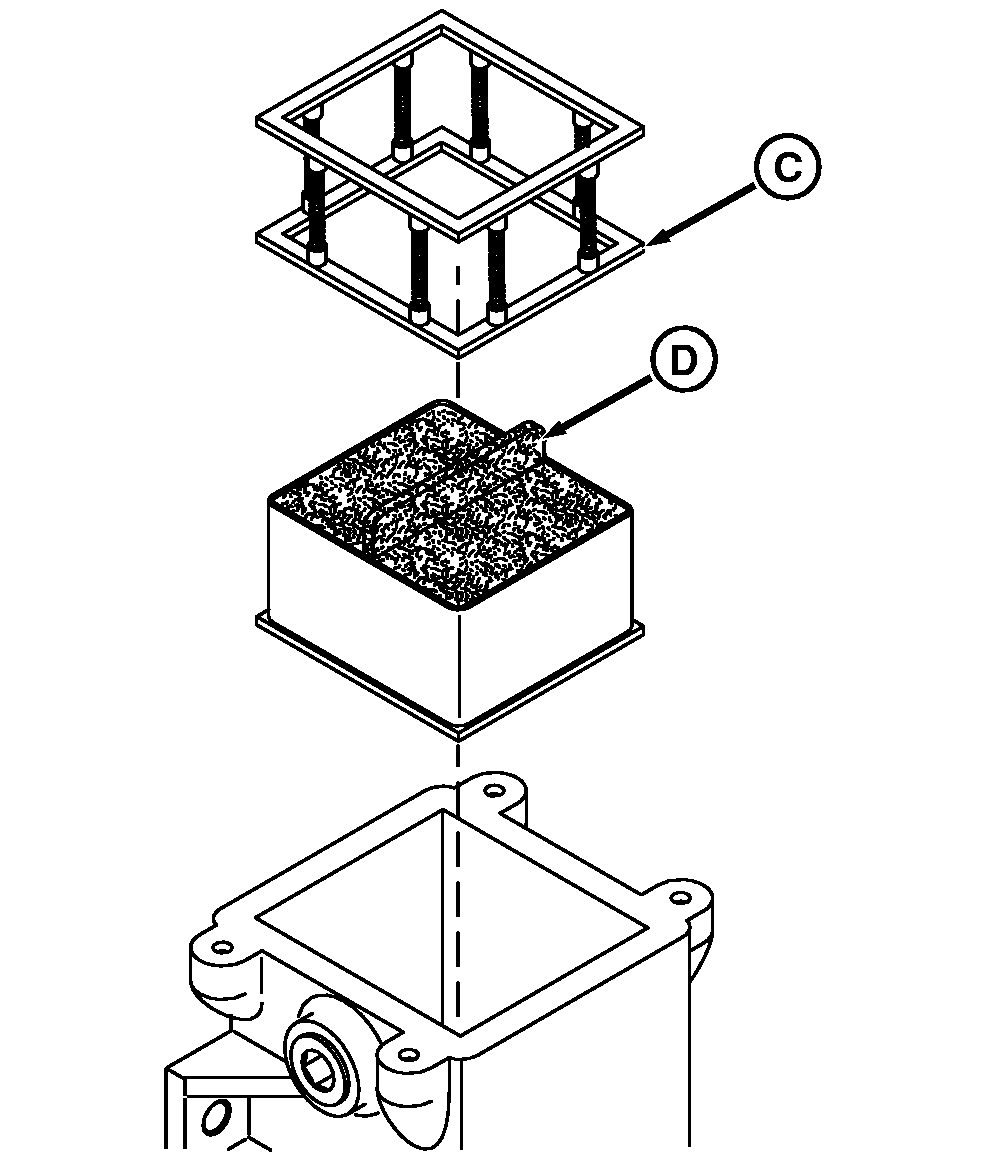

   Remove Spring Cassette and Filter Element

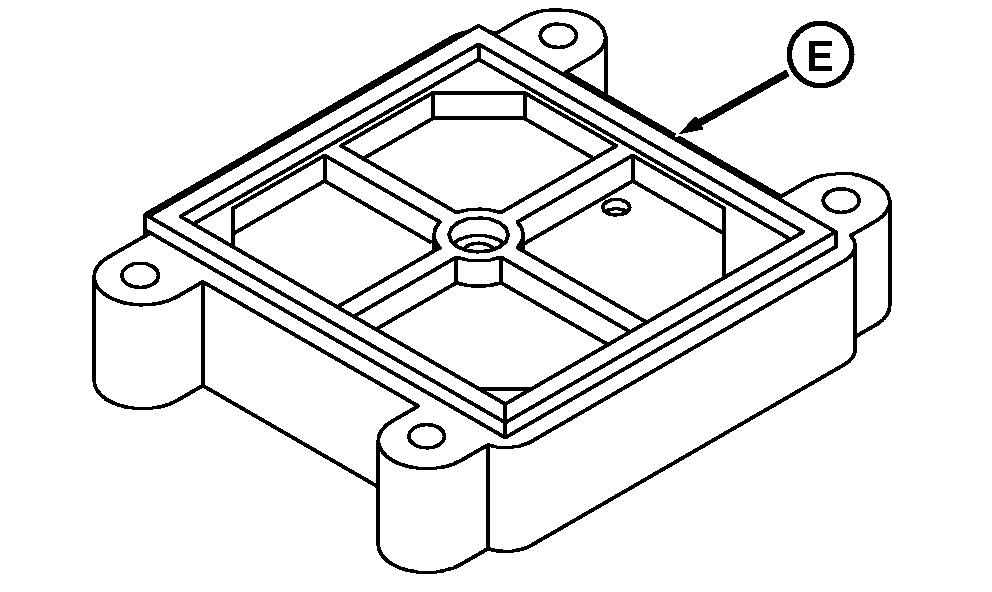

   RXA0089773-UN-14JUL06

   Gasket

   A - Cap Screws

   B - Cover

   C - Spring Cassette

   D - Handle

   E - Gasket

   NOTE: Drain fuel into an appropriate container and dispose of properly.

   SERVICE INTERVAL — 500 HOURS *

   * Interval can vary according to operating conditions

---




2. Open drain valve and drain fuel from bowl.

3. Remove cap screws (A) and lid (B).

4. Remove spring cassette (C).

5. Lift out filter element by the handle (D).

6. Wash filter in clean diesel fuel or mineral spirits.

7. Inspect filter for damage. If damage, replace with new filter.

8. Install filter element.

9. Install spring cassette.

10. Inspect lid gasket (E) and replace if necessary.

11. Install new filter, spring cassette, lid and four cap screws. Leave cap screws finger tight.

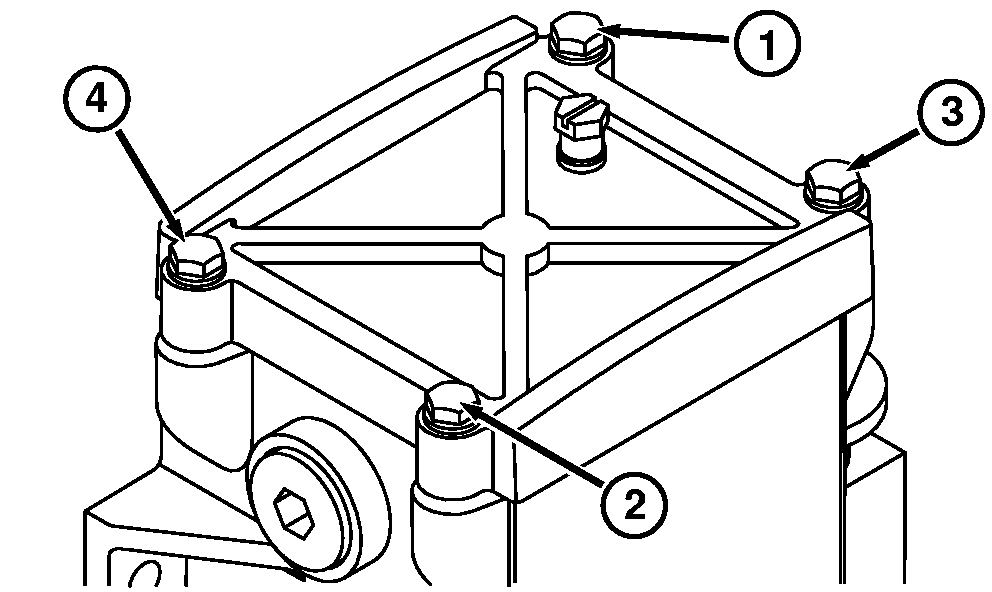

    RXA0089820-UN-14JUL06

    Install Cap Screws

---




12. Tighten cap screws in sequence as shown.

13. Prime fuel system and check for leaks.
