Lubricate VARI-COOL™ Fan Drive and Driven Sheaves—9410R-9460R-9510R-9560R 13.5 L Engine

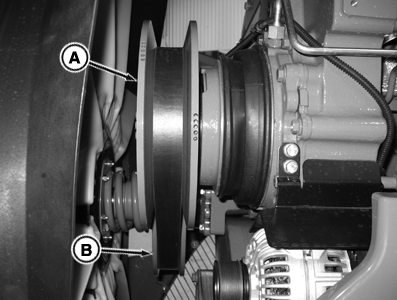

RXA0114358-UN-11MAY11

13.5 L Engine

A - Drive Fan Sheave

B - Driven Fan Sheave

SERVICE INTERVAL — ANNUAL IMPORTANT: Contact dealer to perform this service maintenance to avoid a premature fan drive bearing failure.

NOTE: The moving sheaves on the driver and driven fan drive assemblies are factory filled with corn head grease.

See your John Deere Dealer to perform this required lubrication service.

Contact your John Deere Dealer to top-off or fill the VARI-COOL™ fan drive (A) and driven (B) sheaves to the correct lubrication levels.

Performing this annual lubrication service will extend VARI-COOL™ fan drive performance and avoid premature bearing failure.
