Clean Hydraulic Oil Suction/Sump Screens

SERVICE INTERVAL — AS INDICATED OR REQUIRED SERVICE *

NOTE: * Perform this service only if hydraulic system performance is slow or degraded and after all other solutions were performed.

1. NOTE: Use an oil drain container to hold the hydraulic oil reservoir capacity of 124 L (32 gal).


   RXA0106497-UN-23FEB10

   Hydraulic Sump Screen

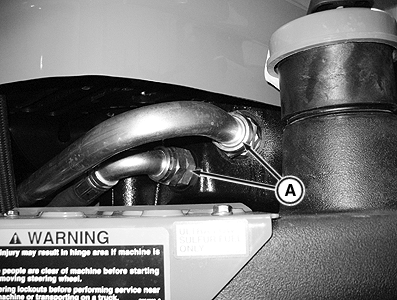

   A - Hydraulic Sump Screen Lines

   Park tractor on level ground and shut engine OFF. Allow oil to cool for few minutes.

---




2. Attach a hose to hydraulic reservoir drain valve in gudgeon area at rear of reservoir. Open drain valve to direct oil into a catch container.

3. Disconnect hydraulic lines (A).

4. Remove or flush both hydraulic oil suction/sump screens. Use cleaning solvent to flush and dry with air.

5. Reinstall both suction/sump screens.

6. Check hydraulic reservoir oil level and refill as required.

   See Checking Transmission-Hydraulic-Axle Oil Level in Lubrication and Maintenance-Daily or 10 Hour Service Section.
