Using Engine Coolant Heater—9.0 L Engine (If Equipped)

CAUTION:

RXA0115904
RXA0115904-UN-21JUN11

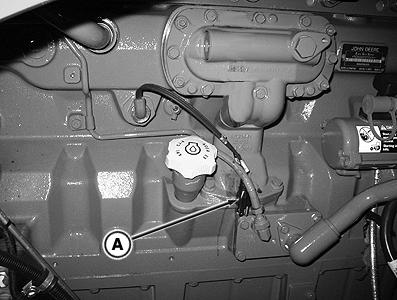

Left Side Of Engine

A - Engine Coolant Heater Plug

To avoid electrical shock or fire, use a three wire, 14 AWG (14 gauge), heavy-duty electrical cord with 15 amp rating, suitable for outdoor use. Always plug electrical cord into an outlet protected by GFI (Ground Fault Interrupter).

Connect the heater plug (A) located on left side of engine to a ground fault protected 110 volt electrical outlet.

Engine coolant heater is available from your John Deere Dealer:

  • Engine Coolant Heater (1000 W) 1

IMPORTANT: The ground fault interrupter on the tractor protects the tractor only, not the electrical wiring supplying power to the tractor. Test ground fault interrupter before each use.

NOTE: Extremely cold weather may require 1-2 hours to heat engine.

1 Includes a ground fault interrupter
