STOP, Service Alert, and Information Indicators

NOTE:

RXA0106794-UN-10MAR10

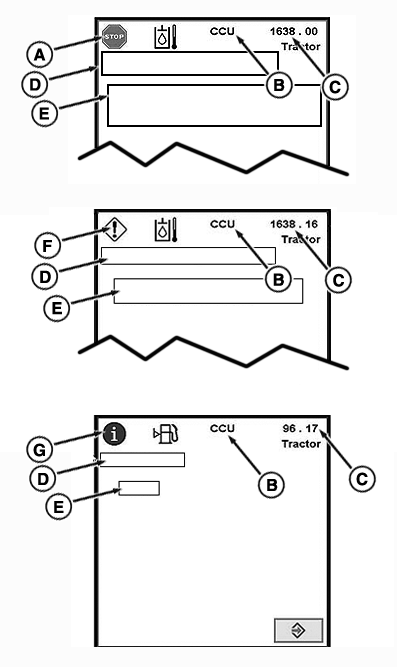

Corner Post Display

A - STOP Indicator

B - Control Unit

C - Diagnostic Trouble Code

D - System

E - Solution

F - Service Alert Indicator

G - Information Indicator

STOP Indicator (A): Light flashes and alarm sounds continuously. A serious malfunction has occurred, requiring immediate attention or the tractor will be damaged. Control unit (B), diagnostic trouble code (C) , system (D) and solution (E) are identified on CommandCenter™. When control unit detects a malfunction or condition ”out of range”, a diagnostic trouble code containing the control unit followed by an industry standard number are displayed. Numbers to the left of the decimal indicate the malfunction and numbers to the right of decimal indicate the condition.

IMPORTANT: Engine will shut down automatically if STOP signal is received when operator is out of the seat for longer than 3 seconds and the transmission control is in PARK. CommandCenter™ display can be reset by cycling key switch.

Immediately stop operations, reduce engine speed to idle, then shut down engine and turn key ”ON” to observe CommandCenter™ display for problem identification and solution. It may be necessary to access the stored codes, see Using Diagnostics, Stored Codes and CAN Statistics. Correct problem before restarting.

Follow solution on CommandCenter™ or if situation cannot be corrected contact your John Deere™ dealer.

When either a Service Alert or Information Indicator is displayed, place tractor in park and shut off engine.

Service Alert Indicator (F): Light flashes and alarm sounds five times indicating a performance or operational problem has been detected, which must be resolved as soon as possible. Continued operations can cause a Service Alert to escalate into a STOP indicator. If appropriate corrective action is not taken soon (serviced, repaired, operated in a different manner), a significant reduction in performance and/or machine damage to will occur.

Information (INFO) Indicator (G): Light comes on continuously and alarm sounds for 2 seconds, indicating a fault condition. Tractor operations can continue without damage; but, performance of some functions may be degraded. Operating in a different manner may correct and clear the out of range condition. Some Service Alerts and Information Indicators can be ”acknowledged” and cleared by pressing CommandARM™ Controls Confirm button. If condition still exists, the diagnostic trouble code may reappear later. Restart engine to verify that active diagnostic trouble code still exists before contacting your John Deere™ dealer.
